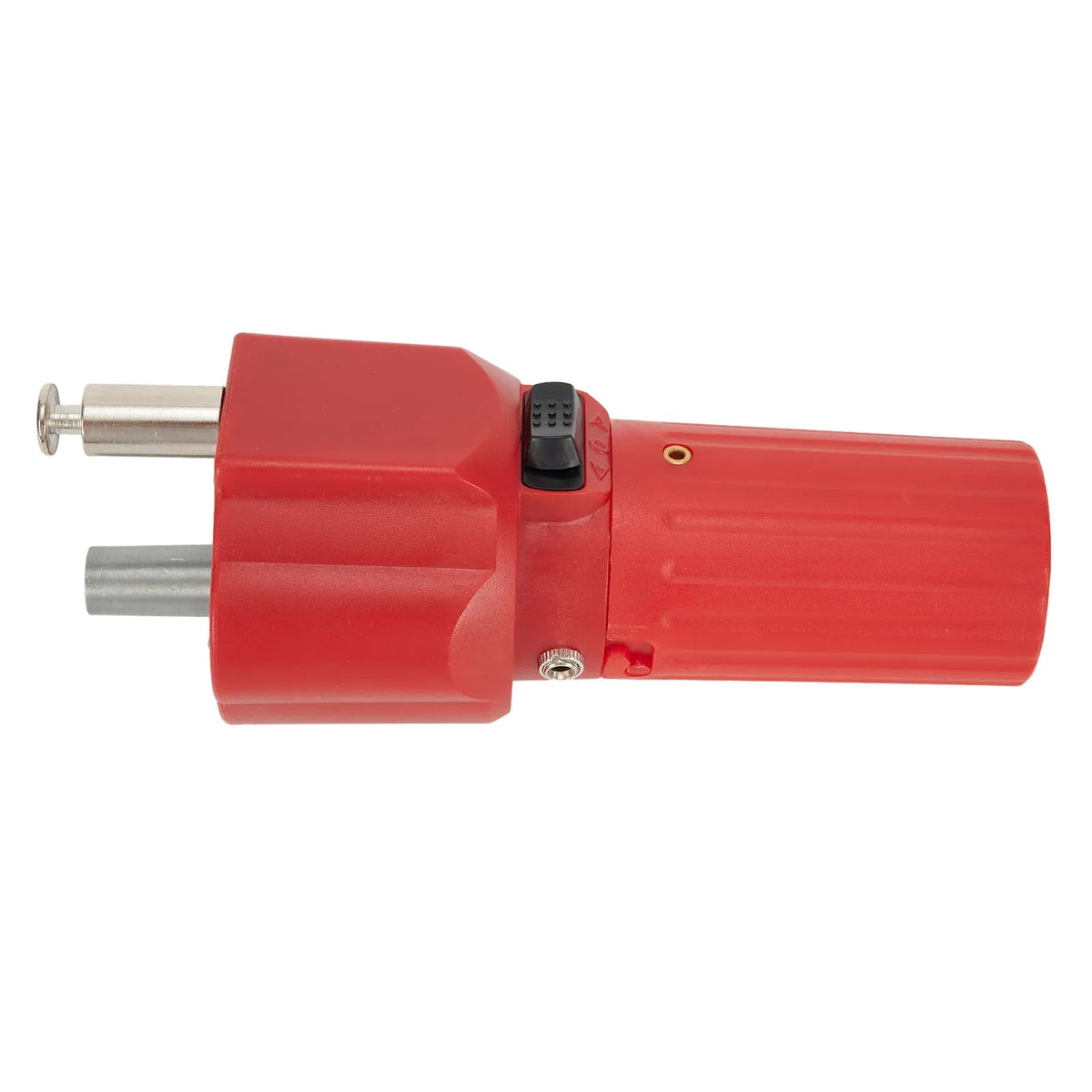

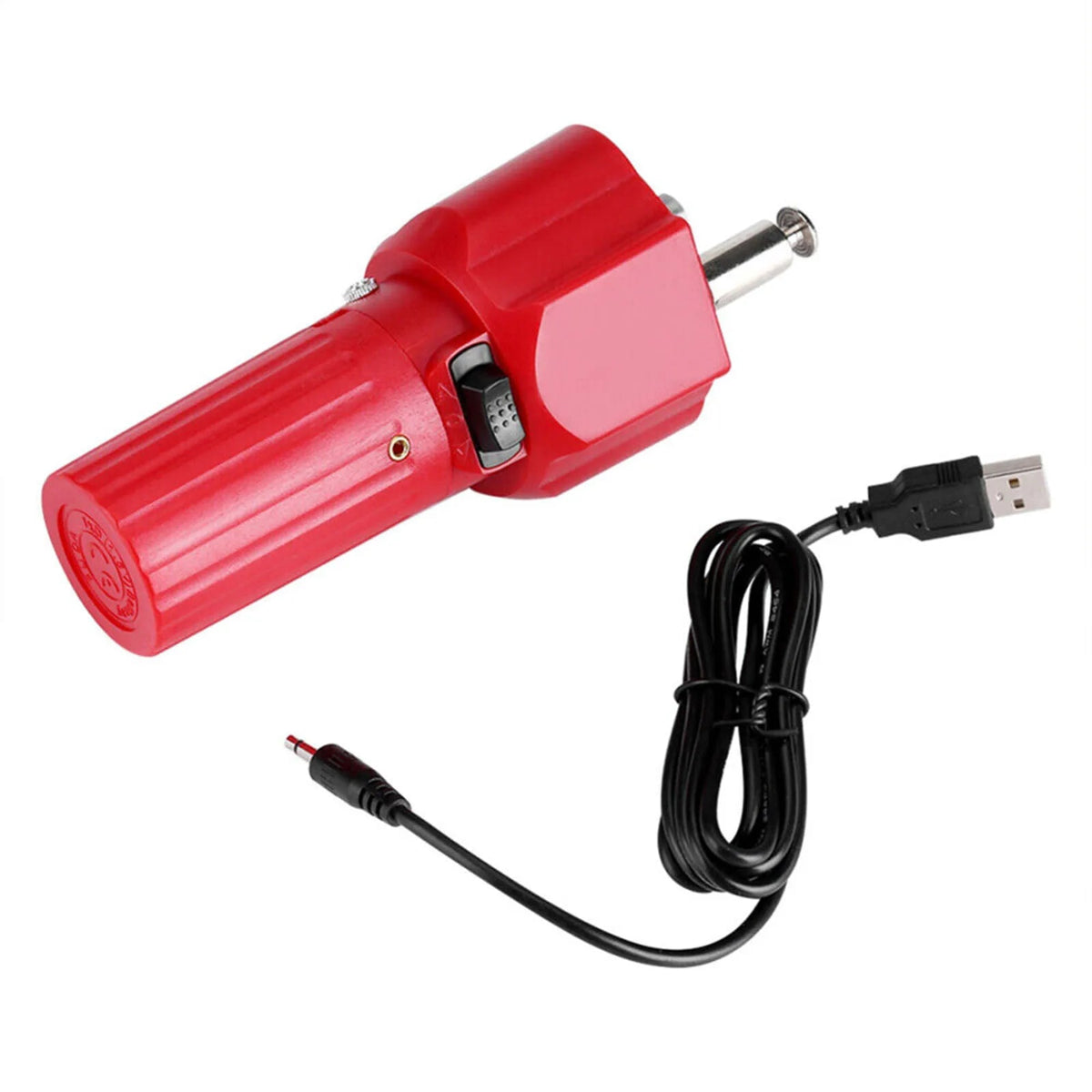

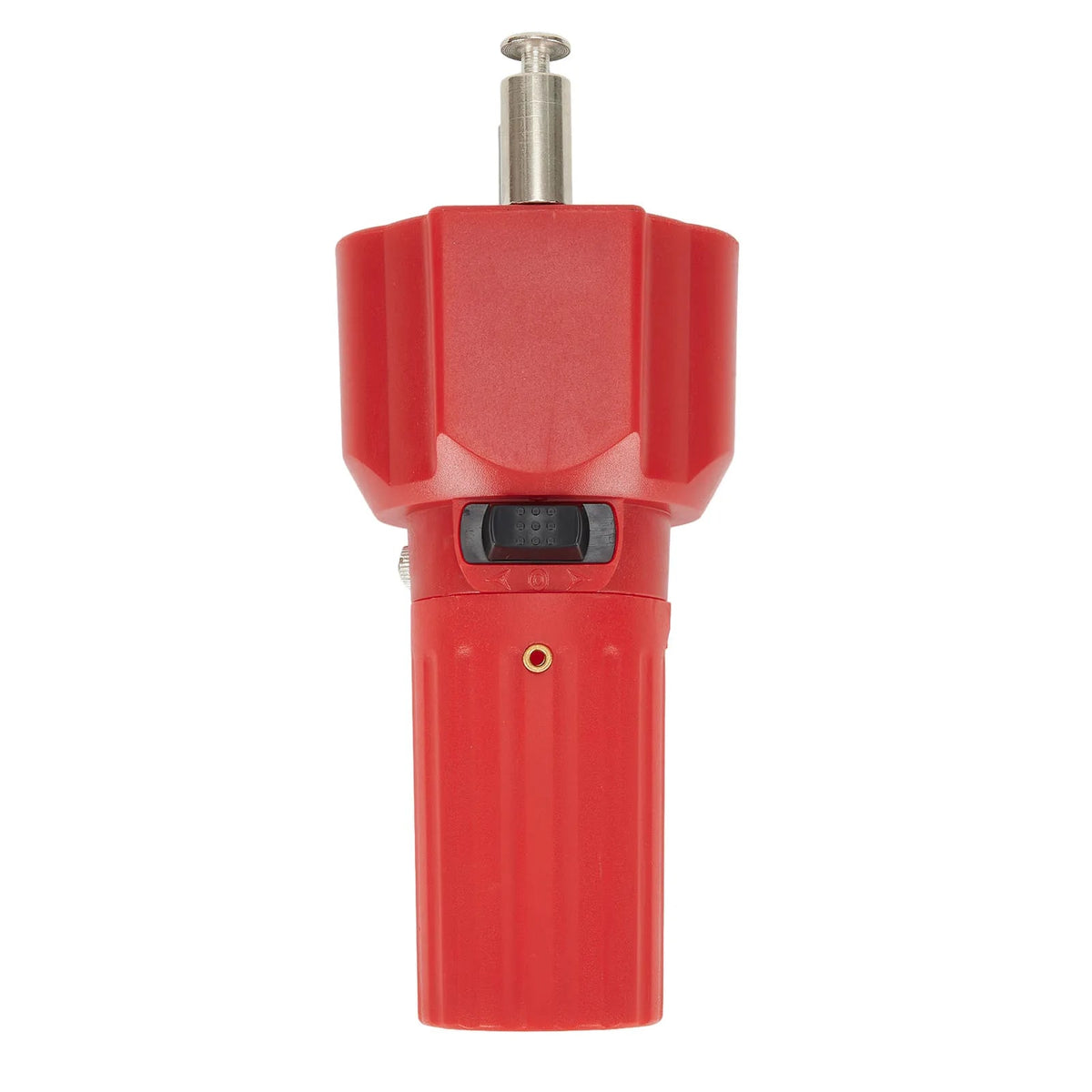

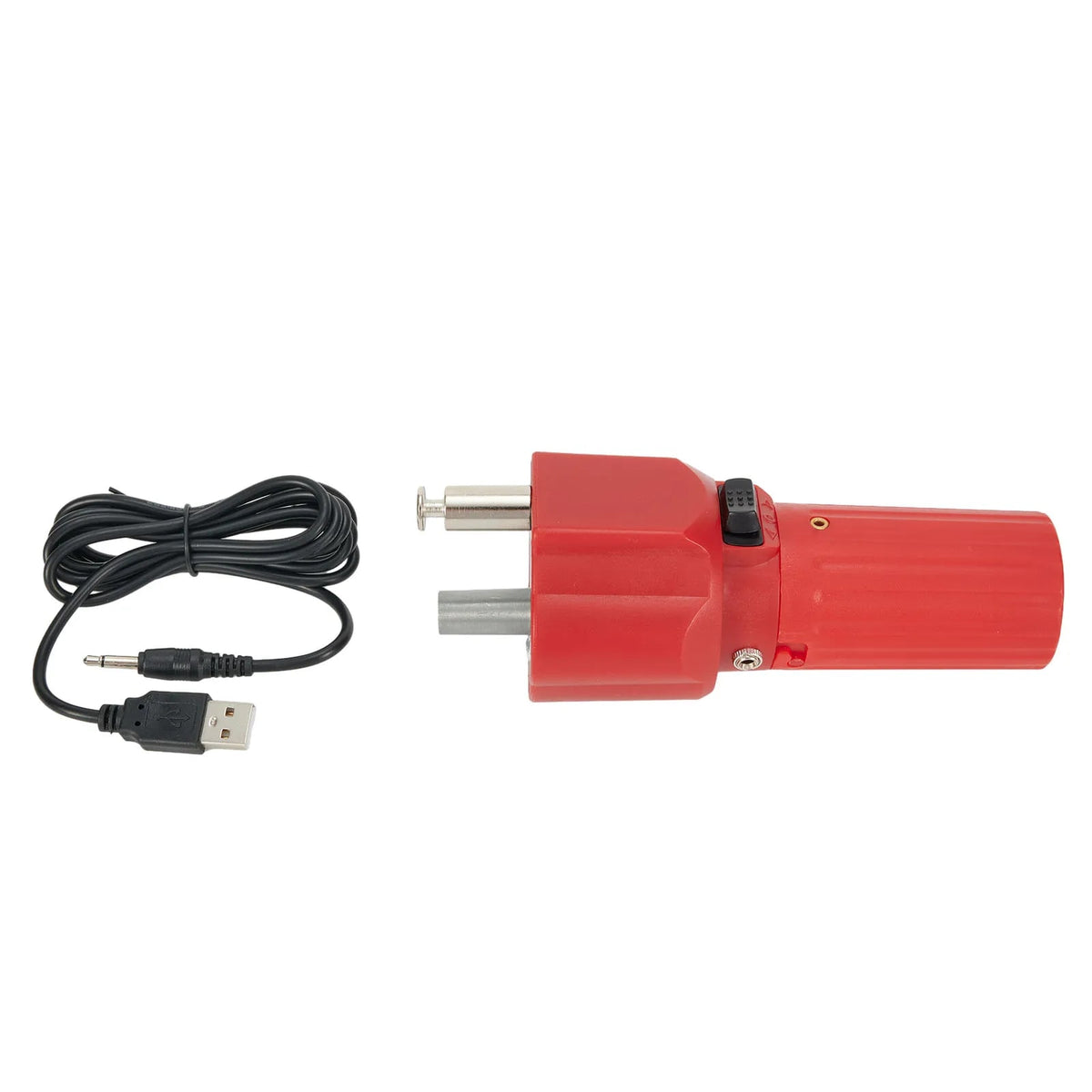

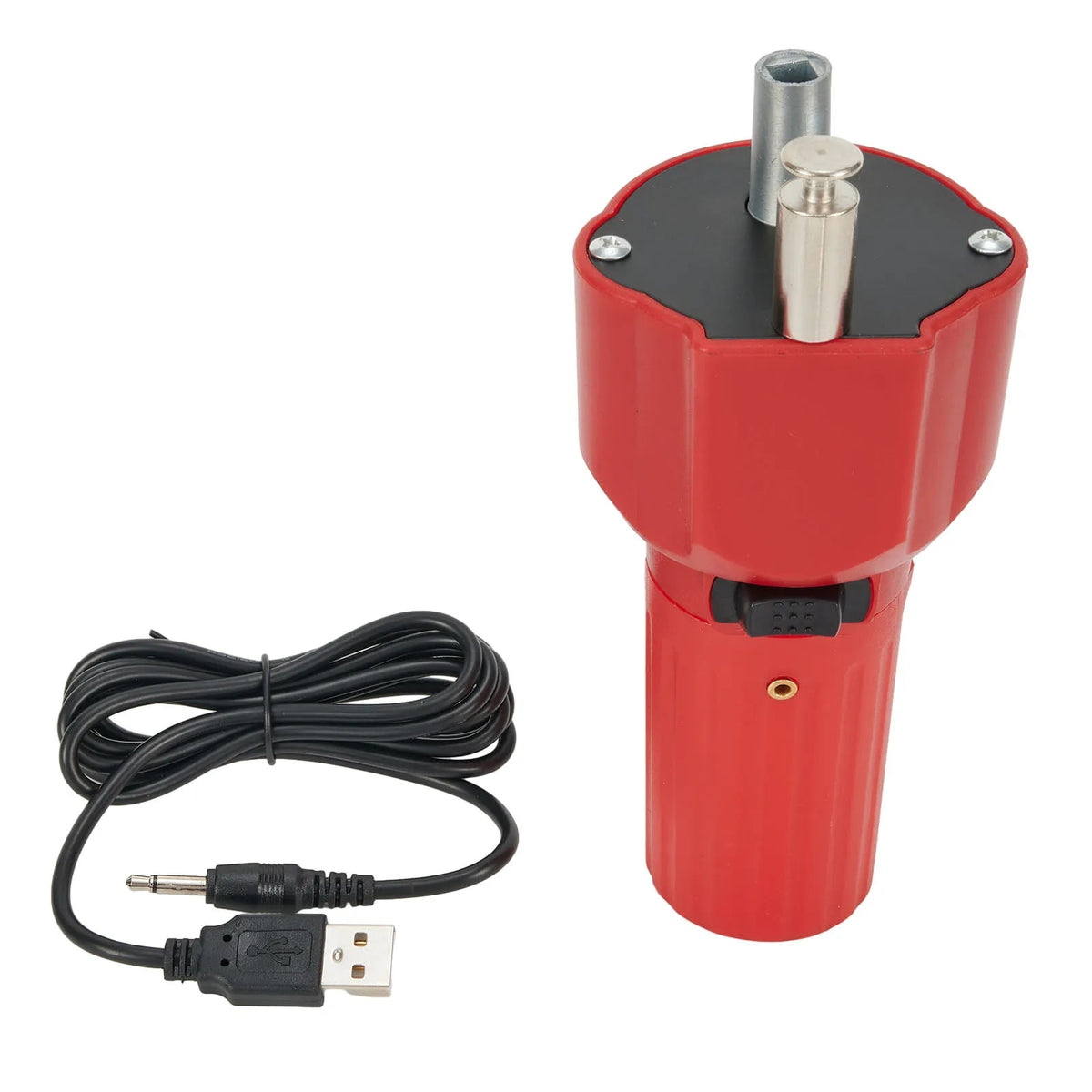

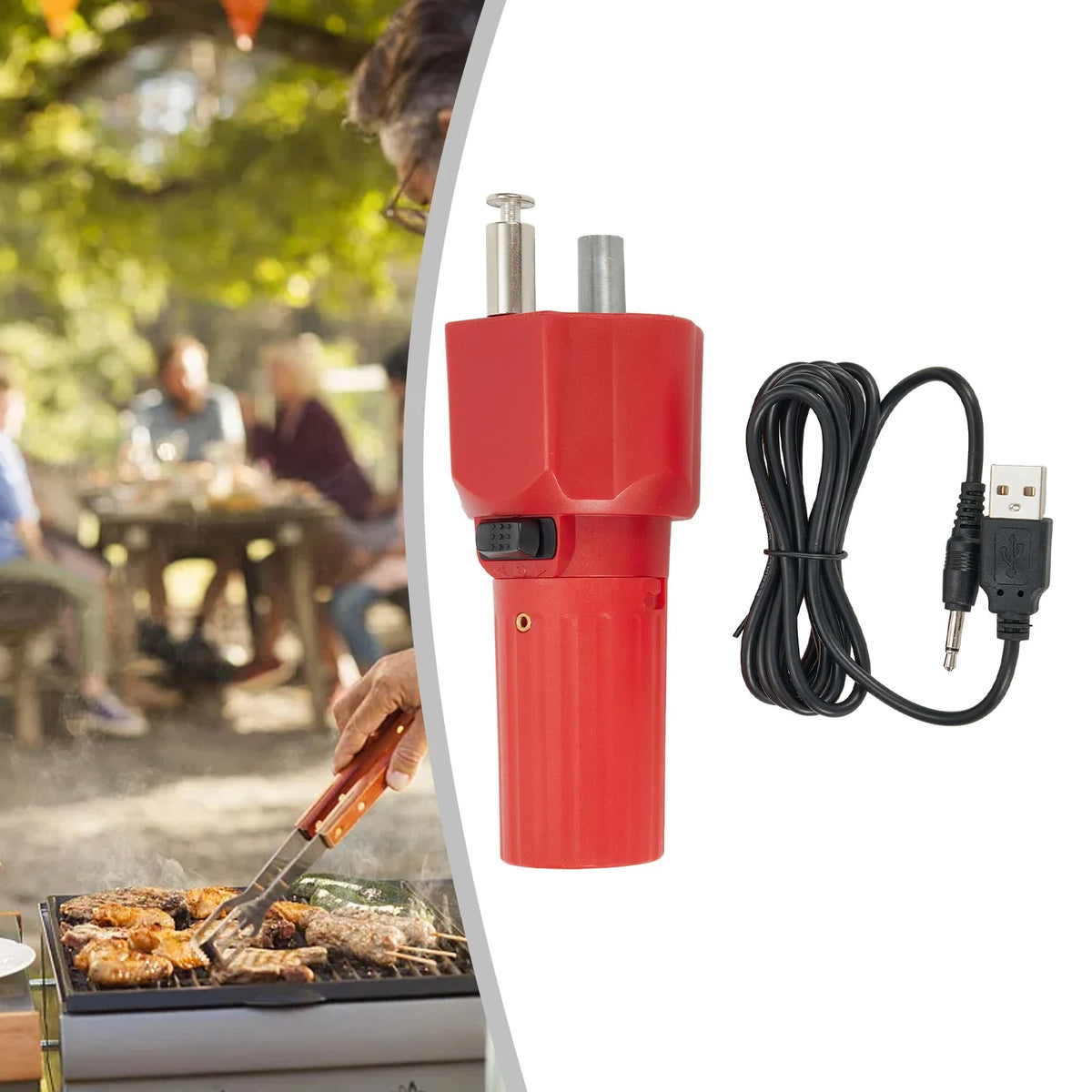

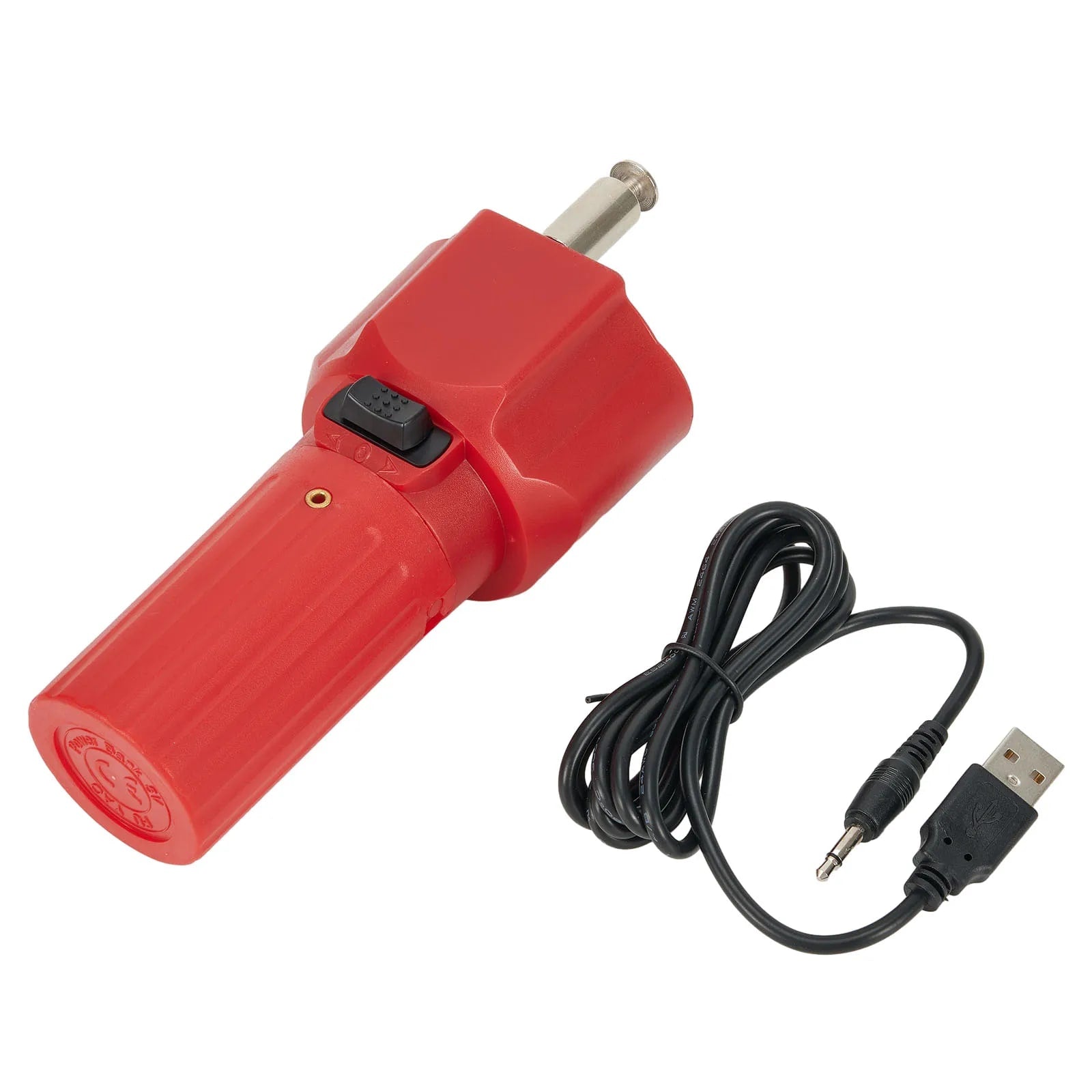

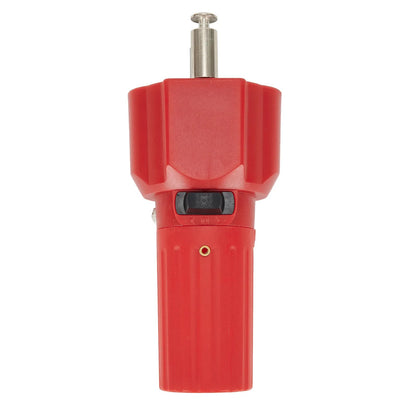

5V BBQ Rotisserie Motor with 1m USB Cable, 4.2rpm, Red ABS and Metal

5V motor for barbecue rotisserie setups

This red 5V BBQ rotisserie motor is designed to drive a barbecue rotator or skewer arrangement where the motor and connector dimensions match your setup. It runs from DC 5V and uses a 1 metre USB boost cable for its power connection. With an output speed of 4.2 rpm and clockwise rotation, it provides a clearly defined drive specification for compatible rotisserie projects and barbecue cooking equipment.

The motor combines an ABS housing with metal drive components. Its red casing has a practical handheld form, with a switch on the body and a metal drive assembly at the front. The listed motor size is 16.5 x 6.3 x 7cm, or 6.4 x 2.4 x 2.7in, so it is worth checking the available space around your barbecue before fitting.

Check the connector before choosing

Rotisserie fittings are not universal, so compare your barbecue or skewer assembly with the measurements below before purchase. The listed rotator connector torque is 0 to 16.0kgf cm. The listed connector or drive size is 6.5 x 6.5mm, equivalent to 0.25 x 0.25in. These details are particularly important when replacing a motor or adapting an existing rotisserie arrangement, as the drive opening and available torque need to suit the parts being turned.

The motor is described for barbecue and grilling use, but the supplied specifications do not identify a universal barbecue fit. Use the dimensions and connector size to confirm suitability with your own equipment rather than relying on the appearance of the motor alone.

Electrical details for straightforward planning

Power is specified as DC 5V, with a 1 metre USB boost cable. The no-load current is below 180mA, while the stated output speed is 4.2 rpm. The direction of rotation is CW, meaning clockwise. These electrical and rotational details make it easier to plan the connection and check the operating requirements of a compatible barbecue rotisserie system before installation.

The body measures 16.5 x 6.3 x 7cm. Its ABS and metal construction gives you the material information needed when assessing it as a replacement or project component. The main colour is red, with the visible housing surrounding the metal drive section.

For replacement and DIY rotisserie projects

This motor suits shoppers looking for a separately specified drive unit for a barbecue skewer rotator, a replacement motor or a custom grilling project. Before use, check the physical clearance, drive connection, direction required and the load placed on the motor. The torque specification is given as a range from 0 to 16.0kgf cm, so the motor should be selected only where those requirements align with the intended setup.

For a practical fit check, measure the receiving connector, allow room for the 16.5 x 6.3 x 7cm motor body, and confirm that your power arrangement provides DC 5V through the 1 metre USB boost cable. This helps avoid relying on an assumed universal fit.
