BBQ Oven Synchronous Motor AC 220V 6W, 2 RPM Replacement Motor for Forks

Replacement motor for BBQ oven fork rotation

This synchronous motor is intended for use as a replacement drive motor in suitable barbecue ovens and propane or LPG cooking appliances. It provides a slow, steady rotation of 2 revolutions per minute for compatible cooking forks, helping turn the fork during cooking. The motor can support a maximum load of 6kg, subject to the correct installation and a suitable matching appliance.

Construction and application

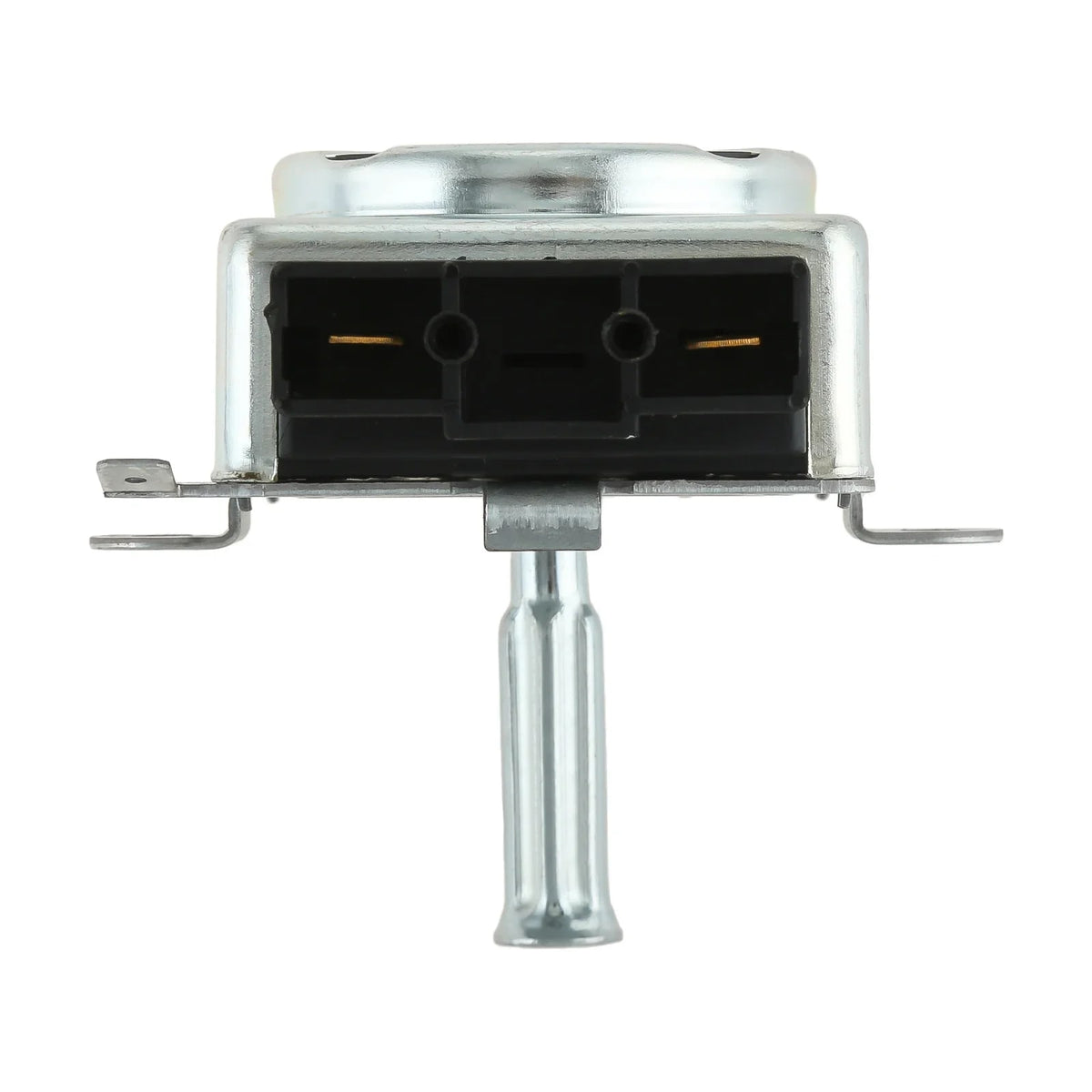

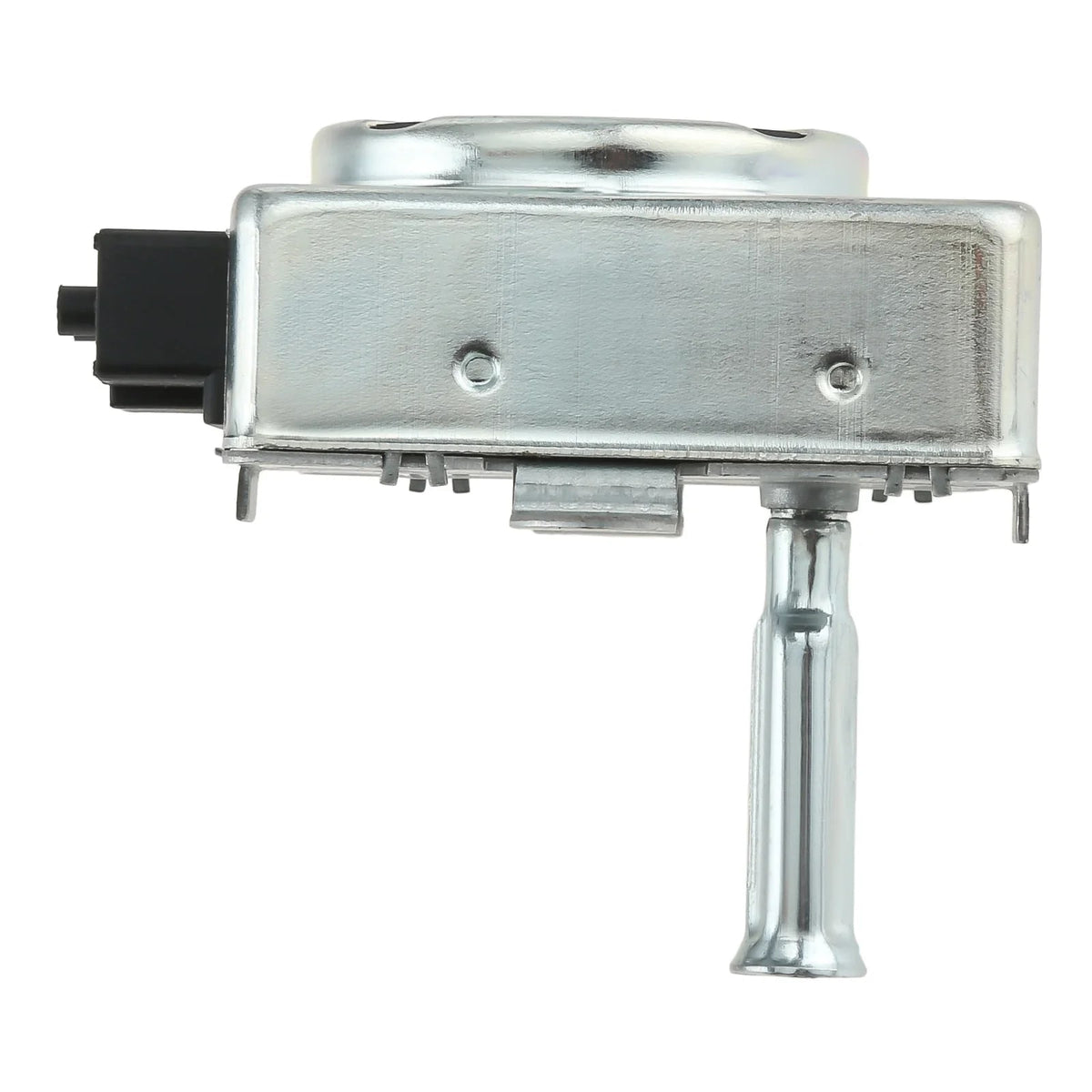

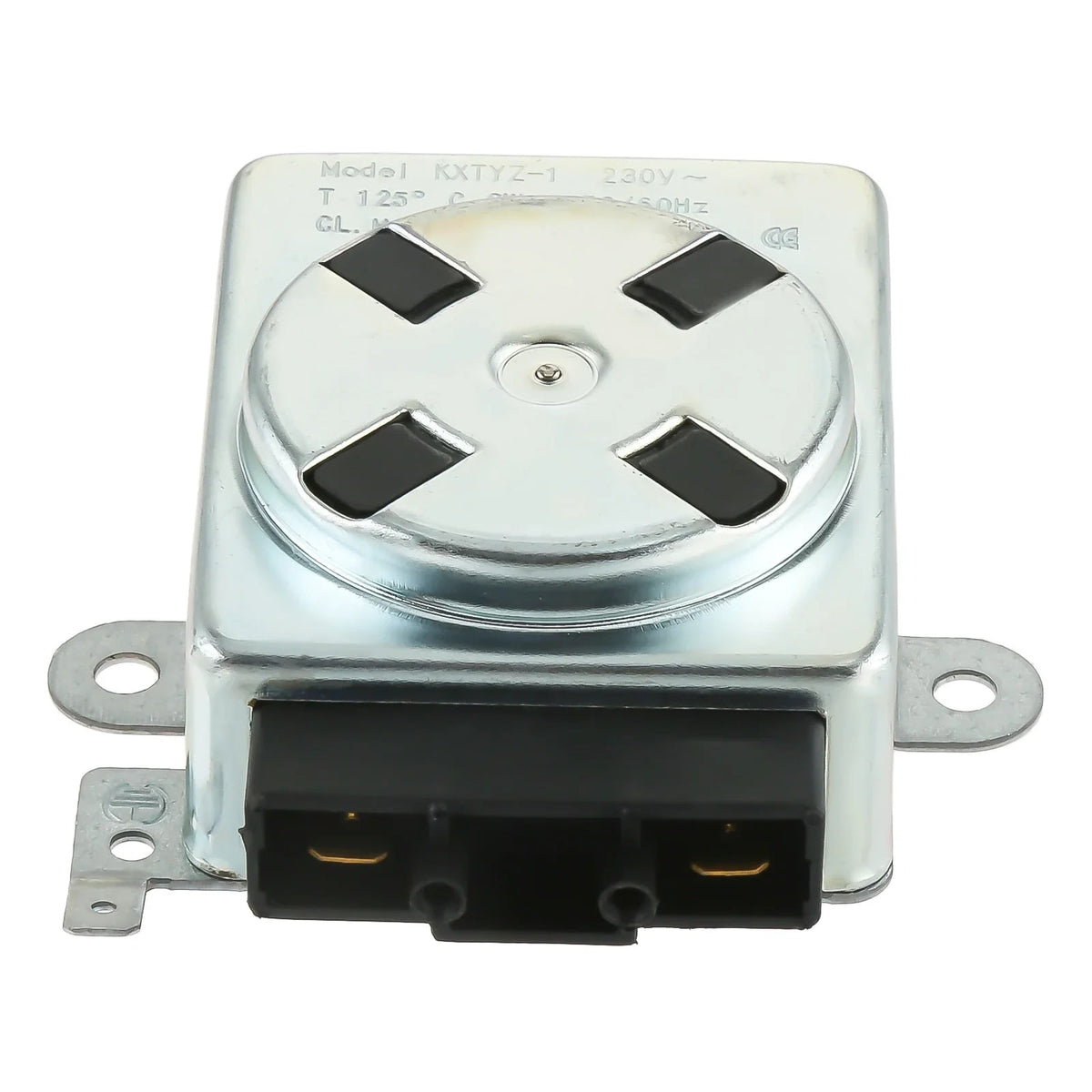

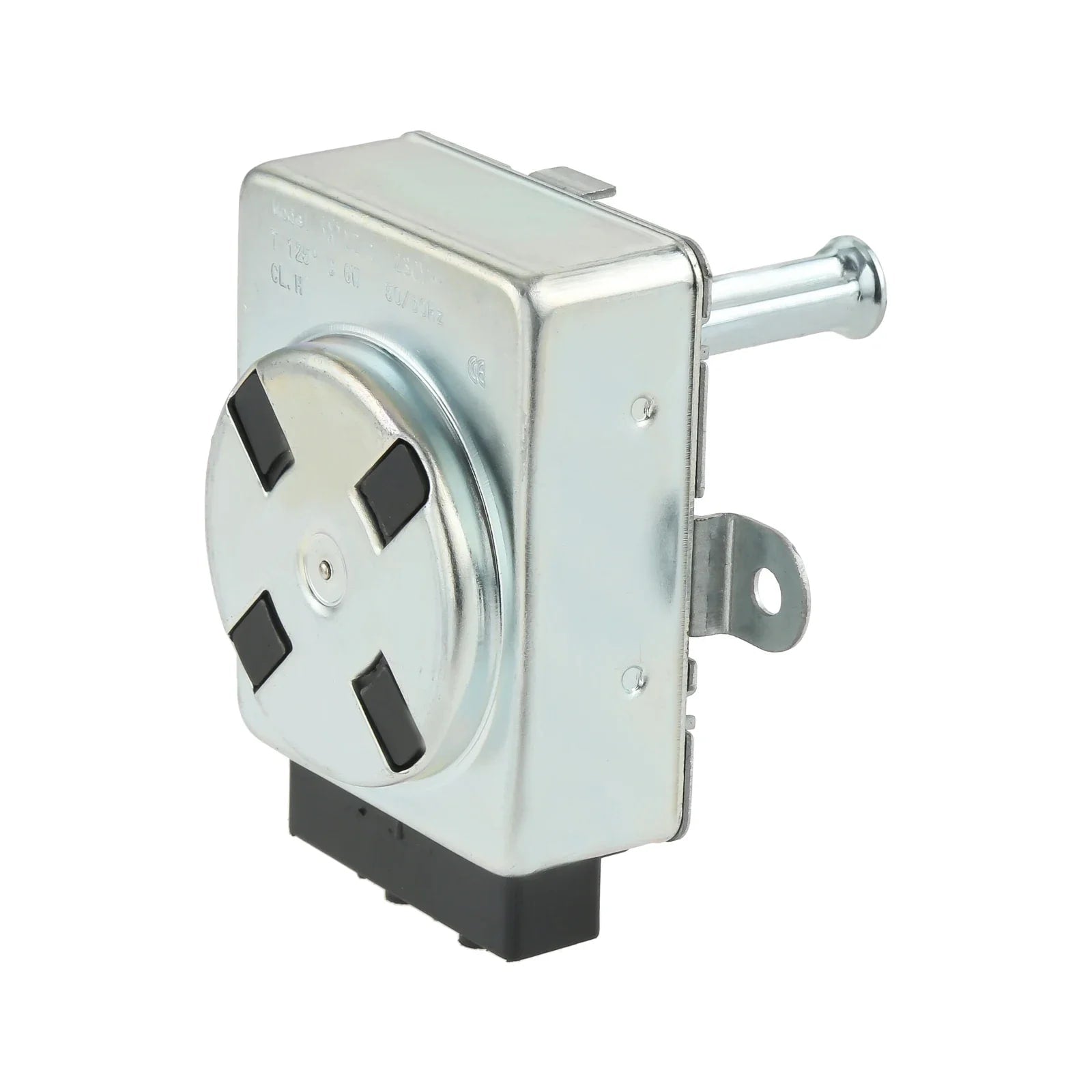

The motor is made from copper and alloy and has a metal housing with mounting tabs and a projecting drive spindle. It is described as suitable for different kinds of fork, making it a practical replacement option where the original motor has stopped working or needs changing.

This is an electrical replacement component rather than a complete rotisserie or barbecue assembly. It is intended for a compatible AC 220V setup and uses no more than 6W of power. The motor should only be fitted where the electrical connection, mounting arrangement, shaft or spindle, and available space match your existing appliance.

Check your appliance before ordering

Replacement motors are not automatically interchangeable between ovens and barbecues. Compare the existing motor with the information below, paying particular attention to the AC voltage, power requirement, drive spindle arrangement, mounting points, connector or wiring arrangement and the type of fork used. The stated maximum motor load is 6kg, so consider the combined weight and balance of the fork and food before use.

Disconnect the appliance from the mains before removing an old motor. Electrical installation should be carried out by a suitably competent person, particularly where mains wiring or a gas appliance is involved. Ensure the motor is mounted securely and positioned correctly before reconnecting the appliance.

Motor performance details

• Motor type: synchronous grill or oven motor
• Electrical input: AC 220V
• Power: no more than 6W
• Input current: no more than 25mA
• Rotation speed: 2 R. P. M.
• Minimum torque: 4kgf. cn or greater
• Maximum stated oven motor load: 6kg
• Starting voltage: no more than 176V
• Insulation resistance: 100MΩ or greater
• Dielectric strength: 1500VAC for 1 minute
• Noise level: no more than 40dB
• Material: copper and alloy

Replacement use

Use the motor only in an appliance that matches its electrical and mechanical requirements. Keep the motor and its electrical connections away from direct contact with food, grease and cleaning water. Allow the appliance to cool fully before cleaning around the motor or removing the cooking fork.

The motor is manufactured in Mainland China. Check the fit carefully against your existing barbecue oven before installation, as physical dimensions and mounting details vary between appliances.
