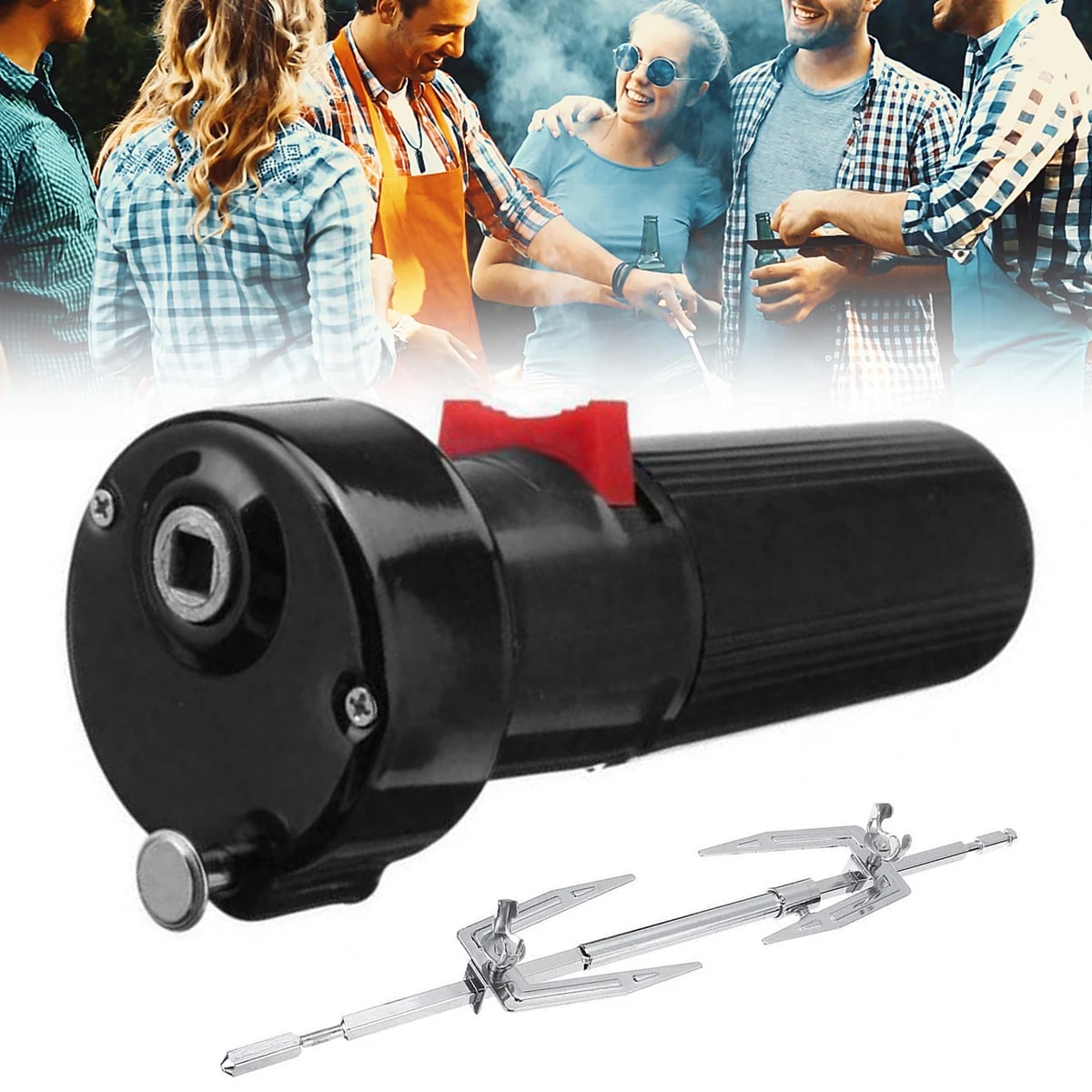

BBQ Rotisserie Motor or Rotary Fork, 1.5V D Battery, 2kg Load

Turn suitable barbecue or oven roasting equipment into a rotating cooking setup with this metal BBQ rotisserie tool, available as either a rotary fork or an oven motor style. The rotary fork is designed around a 5 x 5mm roasting axis and measures 34cm, while the motor is intended for a 6 x 6mm roasting branch. Check the shaft or connection dimensions of your equipment carefully before choosing and fitting this product.

Key features

• Metal BBQ rotisserie tool for roasting applications
• Available in rotary fork and oven motor styles
• Rotary fork size: 34cm
• Rotary fork roast axis: 5 x 5mm
• Motor suits a 6 x 6mm roasting branch
• Specified load-bearing capacity: 2kg

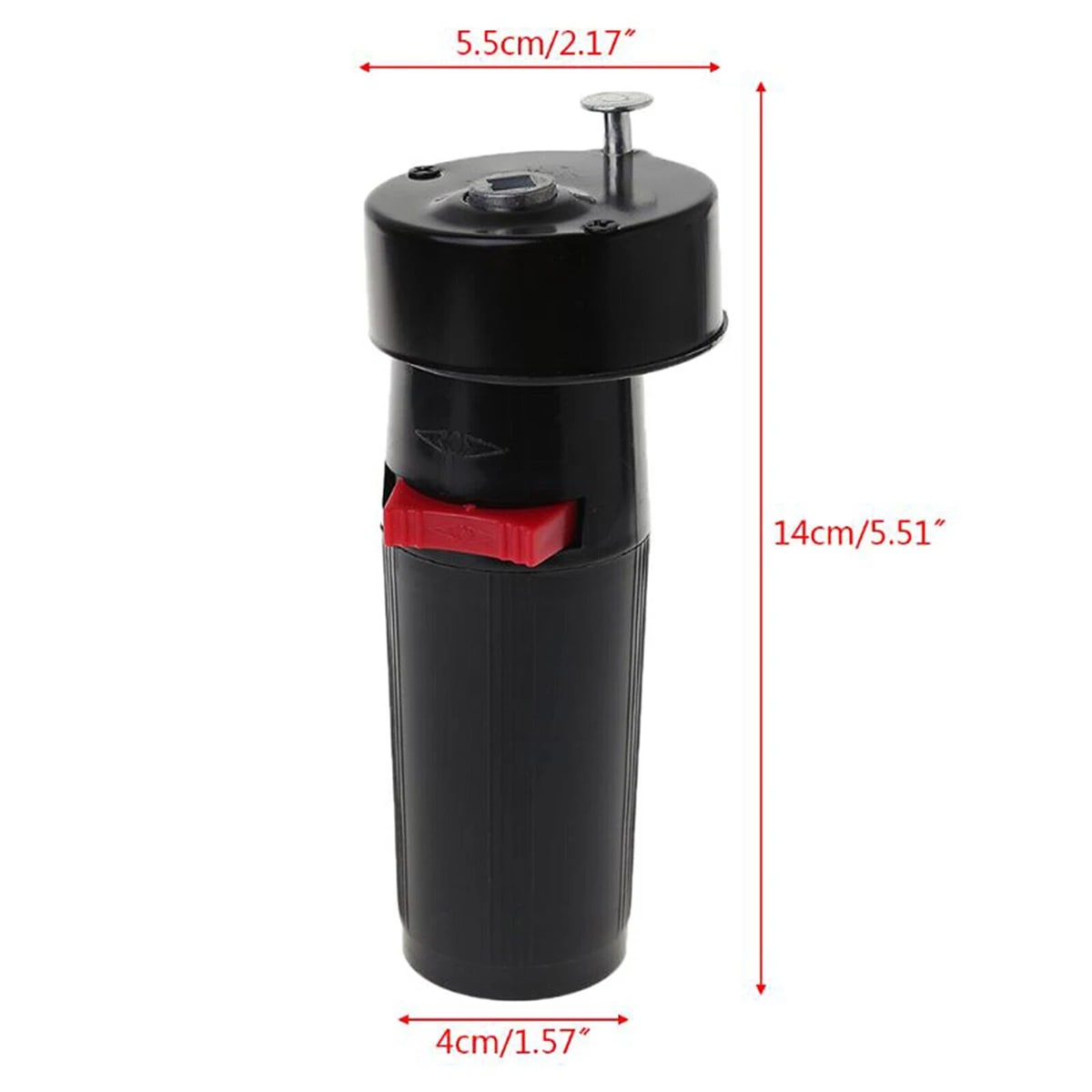

• Oven motor size: 130 x 53mm
• Motor powered by 1 x D 1.5V battery, which is not included
• Output speed: 2 to 2.5 revolutions per minute
• Maximum rated current: 0.20A
• No-load current: 180mA or less
• No-load power: up to 4W
• Specified noise level: up to 62dBA

Choose the correct style

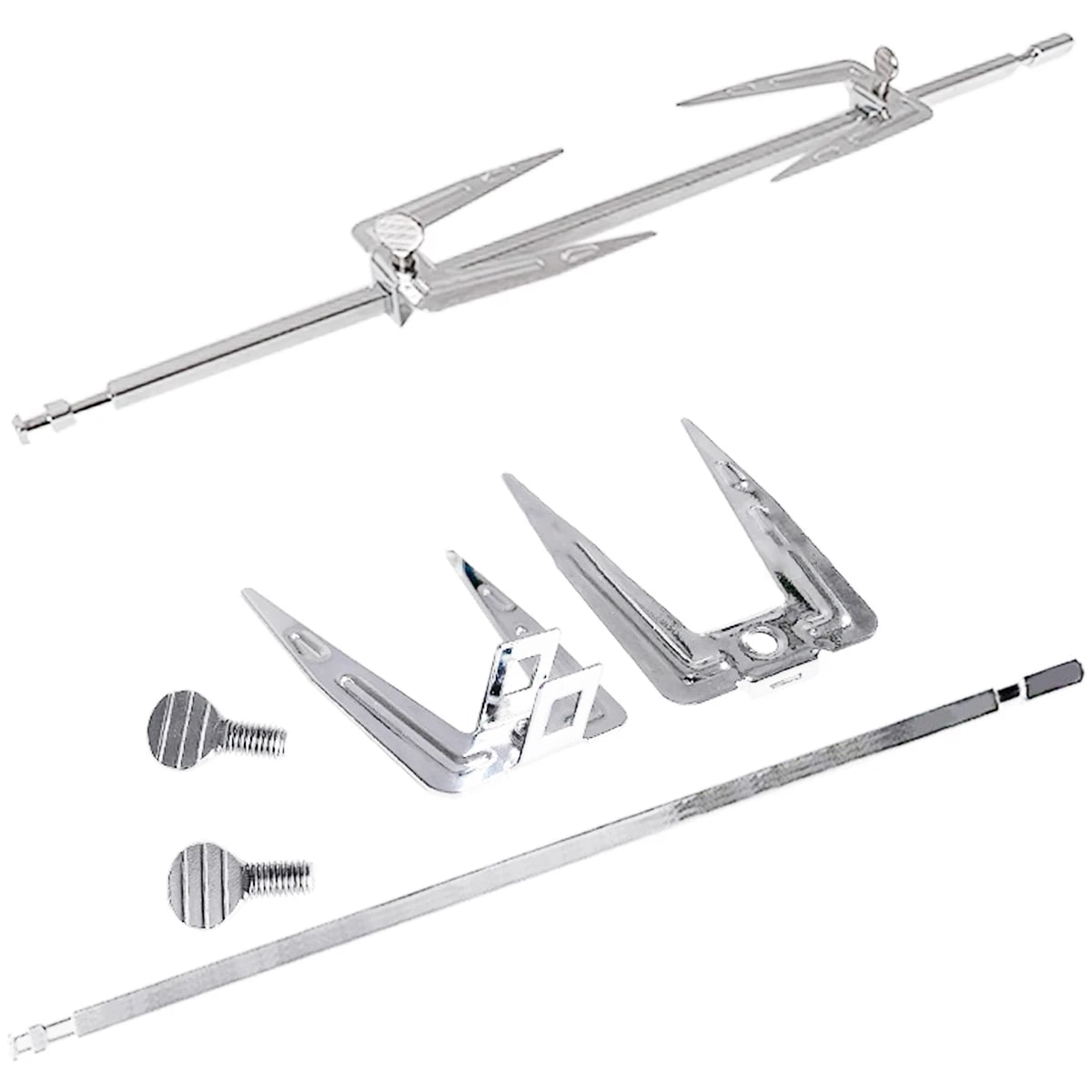

The rotary fork style is the cooking attachment, with a 34cm fork assembly and a 5 x 5mm roast axis. It is suited to setups that accept this axis size. The oven motor style is the powered rotating unit and is specified for a 6 x 6mm roasting branch.

These are different styles, so compare the product option presented on the listing with your intended use. Compatibility is not universal. Before ordering, measure your existing roasting branch or shaft and confirm both the connection shape and dimensions match the relevant specification above.

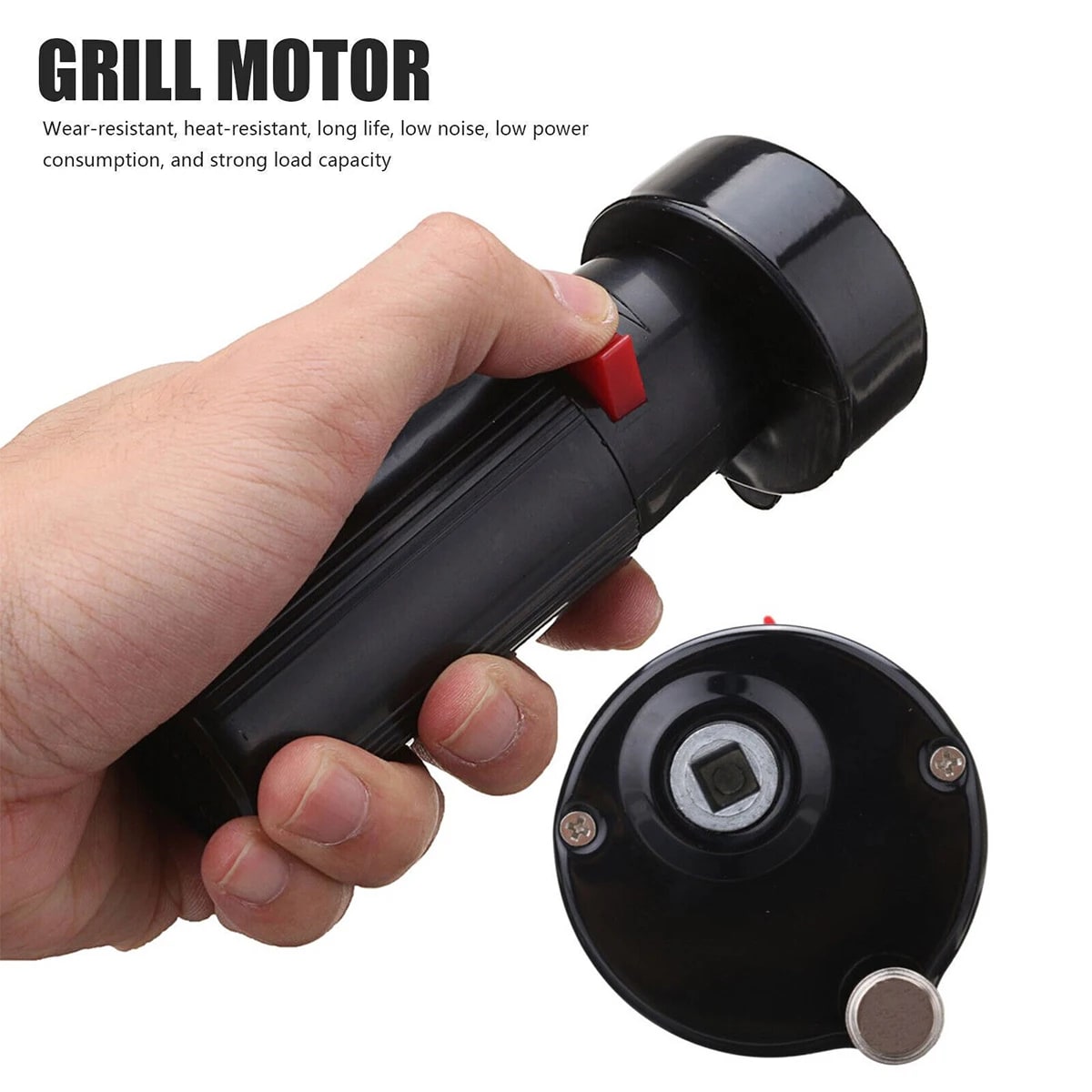

Motor details

The oven motor runs from one D-size 1.5V battery. The battery is not included, so a suitable battery will need to be obtained separately. Its stated output speed is 2 to 2.5 RPM, providing the specified slow rotation used by a rotisserie mechanism. The electrical specifications are a maximum rated current of 0.20A, no-load current of 180mA or less and no-load power of up to 4W.

The stated no-load speed is up to 10,000 ± 10% RPM, while the output speed is 2 to 2.5 RPM. The specified noise level is up to 62dBA.

Rotisserie sizing and load

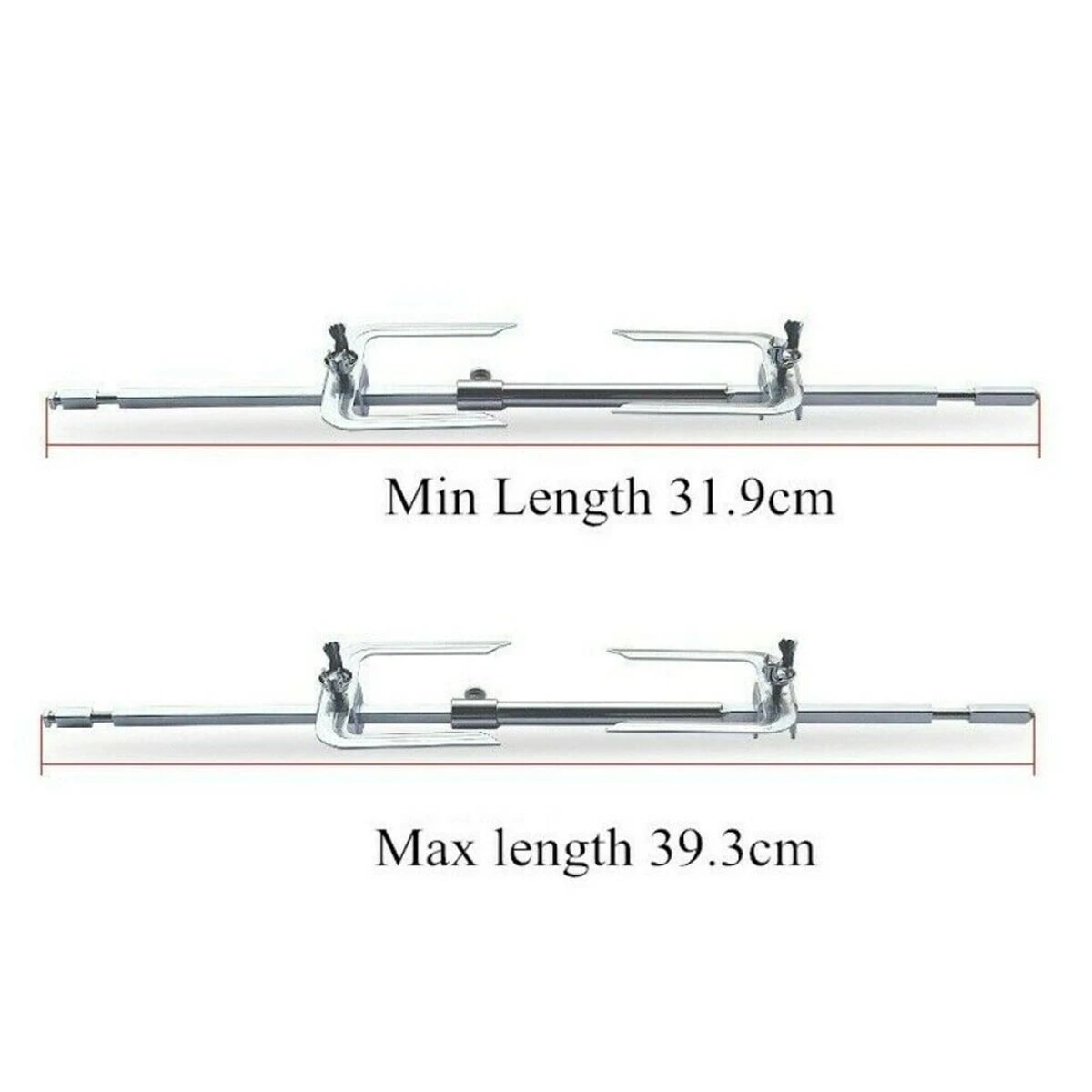

The rotary fork is 34cm long and uses a 5 x 5mm roast axis. The rotisserie tool has a specified load-bearing capacity of 2kg. Keep the food load within this stated limit and ensure it is positioned securely and evenly before operating the rotisserie.

Before fitting

• Identify whether you require the rotary fork or oven motor style.
• For the rotary fork, check for a 5 x 5mm roasting-axis connection.
• For the motor, check that your roasting branch is 6 x 6mm.
• Confirm that the 34cm fork or 130 x 53mm motor dimensions suit the available space.
• Keep the total rotating load at or below 2kg.
• Supply one D 1.5V battery for the oven motor style, as this is not included.

Product information

This BBQ skewer tool is categorised as a metal tool and fork-type barbecue accessory. It is manufactured in Mainland China. Use the exact shaft, branch and load specifications above when checking whether it is suitable for your roasting arrangement.
