Brass Low-Pressure Gas Safety Valve for BBQ Grills, Solenoid Pilot, AI-FM010B

Brass low-pressure gas safety valve for BBQ grill applications

• Standard pilot-structure gas safety valve
• Brass construction
• Designed for low-pressure gas systems
• Solenoid-powered operation
• Gas media
• Low-temperature media specification
• Gas outlet with 7/16-24 UNF thread
• Model number AI-FM010B

This standard brass gas safety valve is intended for low-pressure gas equipment, including suitable BBQ grill applications. It provides a replacement valve option where the existing component needs to be matched by its operating specification, connection arrangement and mounting position.

Check the connection before choosing

The gas outlet is specified with a 7/16-24 UNF thread. Before ordering, compare this thread specification with the connection on your existing barbecue or gas appliance. Thread size alone does not confirm compatibility, so also check the valve layout, mounting arrangement, operating pressure and the requirements of your particular gas system.

The valve has a pilot structure and is specified for solenoid power. It is intended for gas media and low-pressure operation. These details are important when replacing a valve, as a visually similar component may not have the same pressure, power or connection requirements.

Brass valve body for replacement work

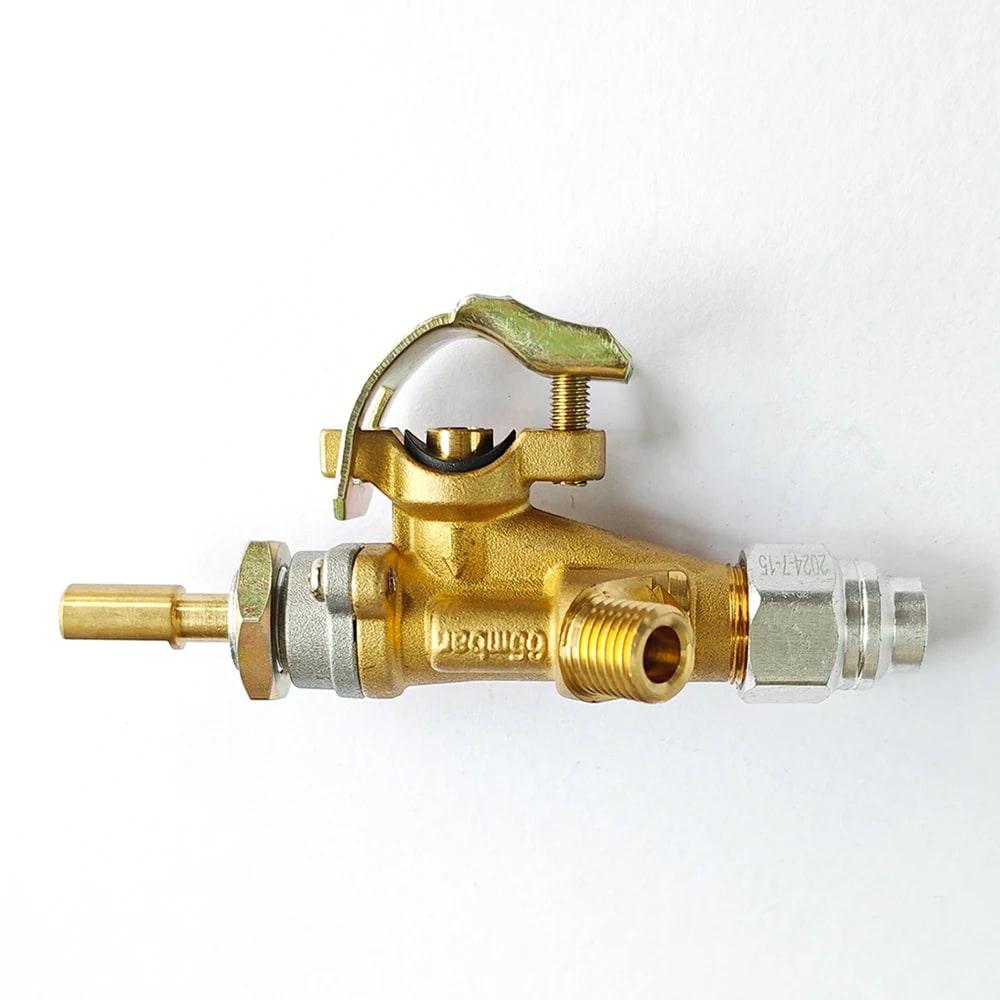

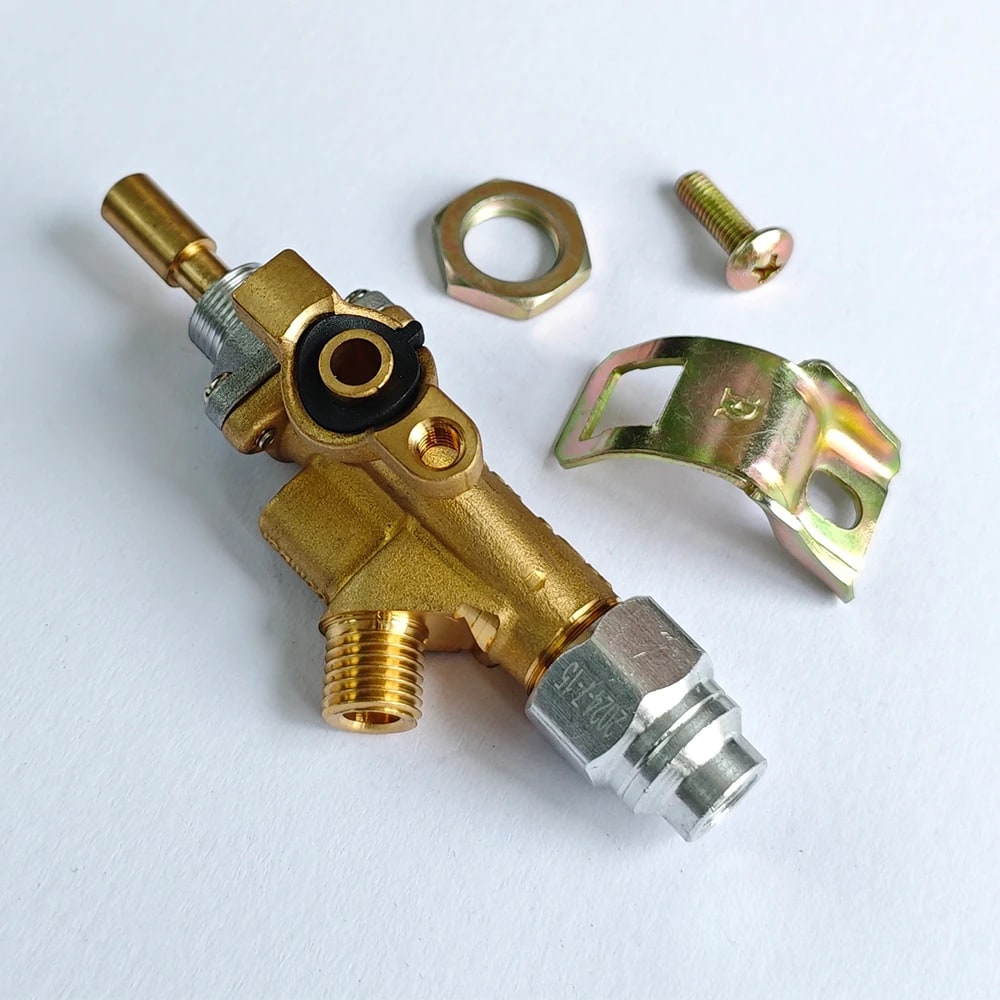

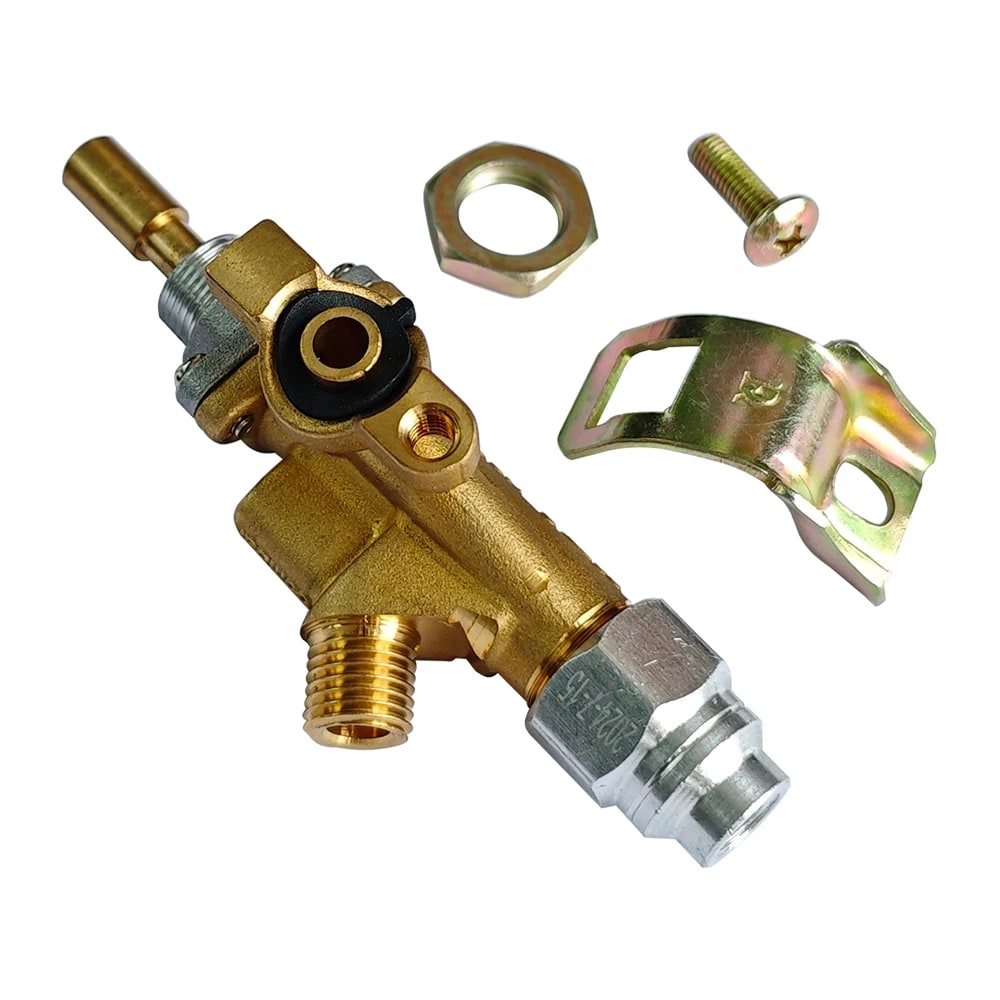

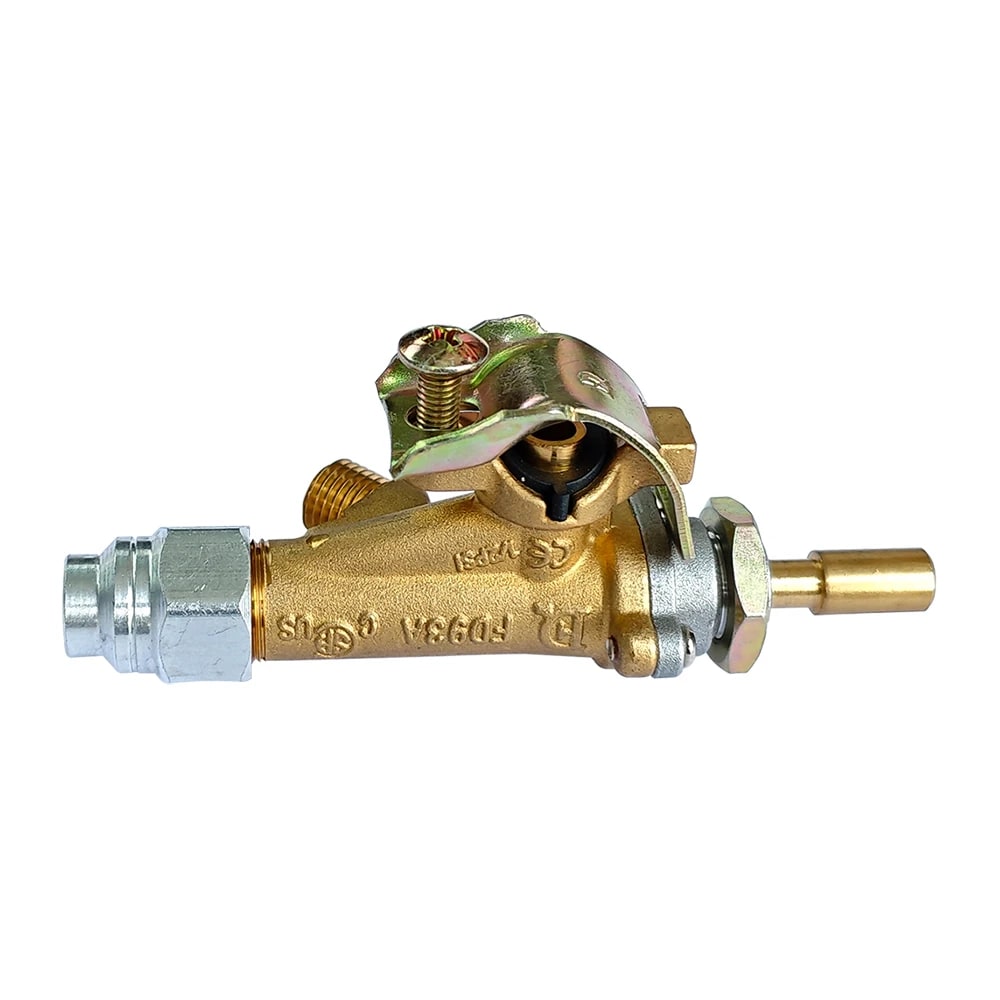

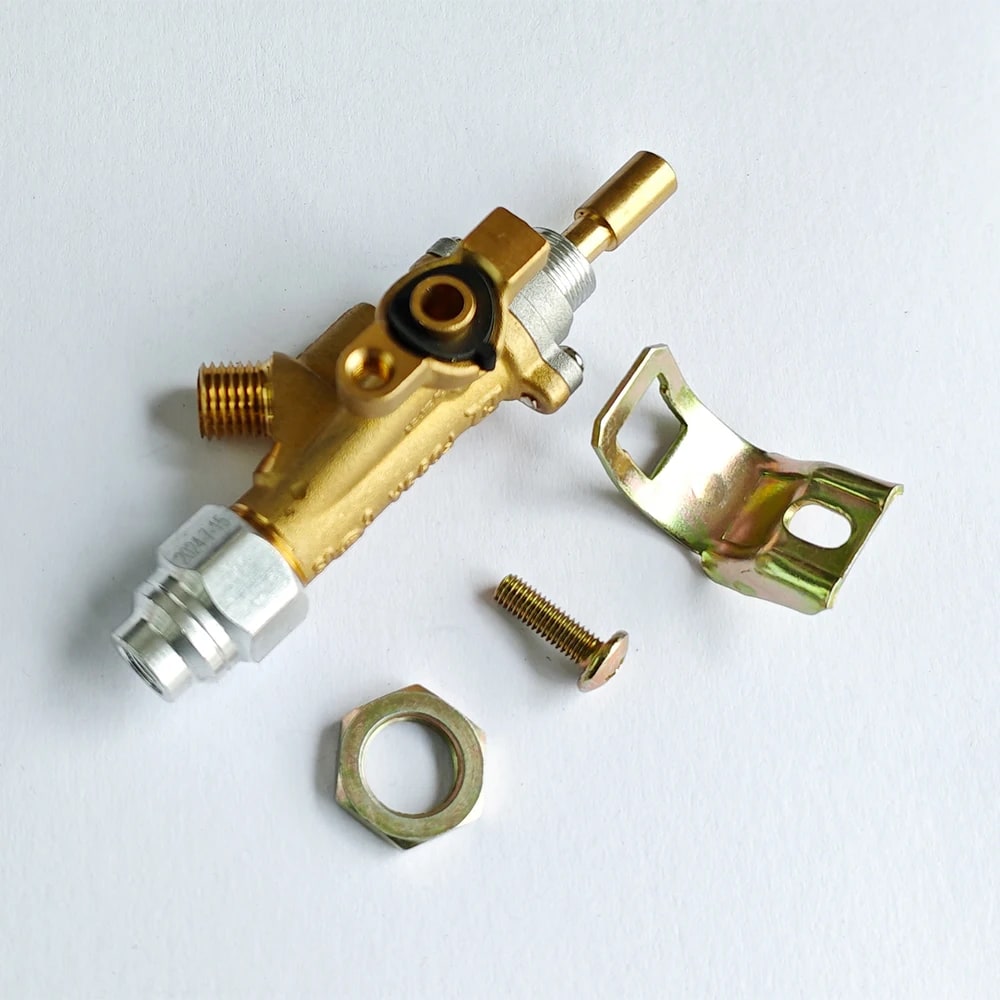

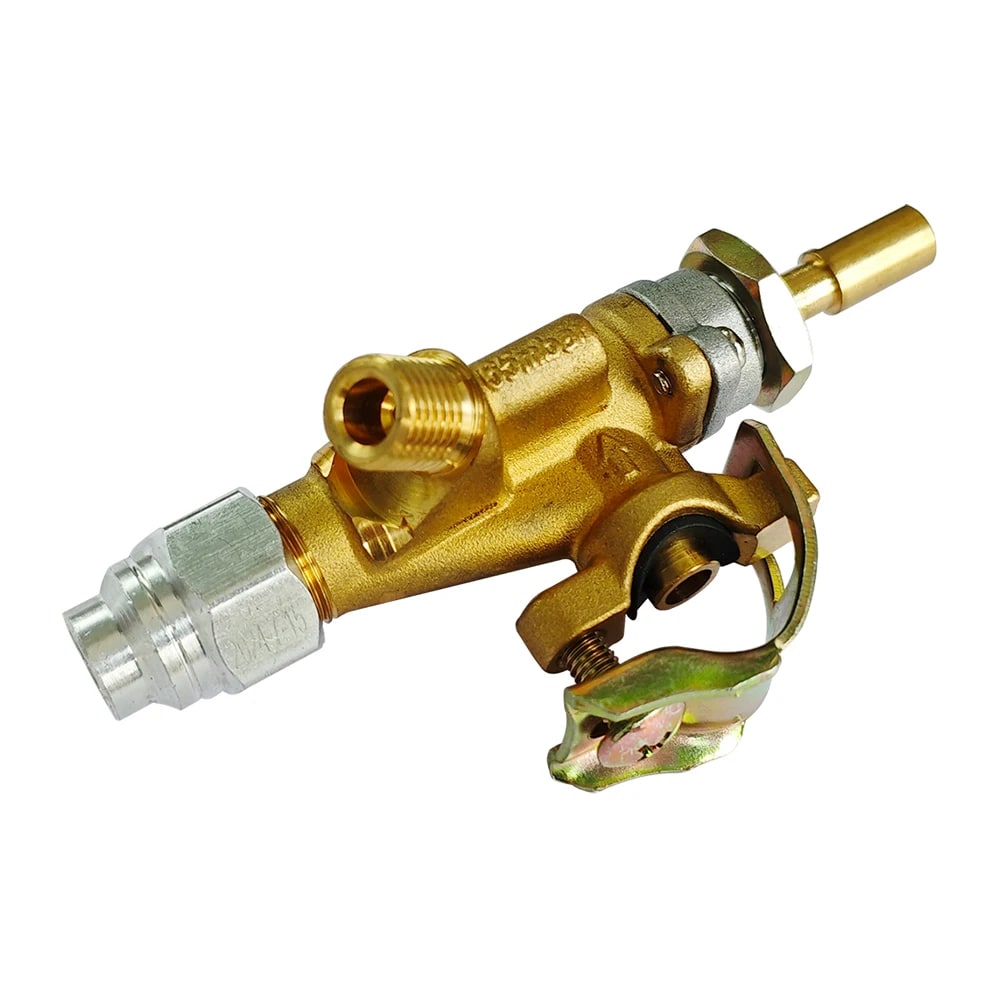

The valve body is made from brass. The pictured assembly also has a mounting bracket and threaded fittings, allowing the component to be assessed against the existing installation before fitting. Check the position of the ports and fixing points carefully, as no universal-fit claim is made for this valve.

For a safe replacement, isolate the gas supply and follow the appliance manufacturer's instructions. Gas components should be installed, checked and tested by a suitably qualified person. Do not use this product unless its pressure, connection thread, solenoid arrangement and mounting position are appropriate for the appliance.

Product details

• Material: Brass
• Type: Standard gas safety valve
• Structure: Pilot
• Pressure: Low pressure
• Power: Solenoid
• Media: Gas
• Temperature of media: Low temperature
• Gas outlet thread: 7/16-24 UNF
• Model: AI-FM010B
• Country of manufacture: Mainland China

Use the model number and the listed specifications when comparing this valve with the part currently fitted to your BBQ grill or other gas appliance. If any connection or operating detail differs, obtain technical advice before installation.
