bbqdeals Gas BBQ Electronic Pulse Igniter, 1.5V AA Battery, 3 Spark

Gas BBQ electronic pulse igniter with three spark terminals

This electronic pulse igniter is designed for gas BBQ ignition systems that use a DC 1.5V AA battery supply. It provides three spark output terminals, making it a practical replacement-style component for suitable gas barbecue setups with multiple ignition points.

Before choosing this igniter, compare your existing component carefully. Check the battery requirement, terminal arrangement, connection type and the available high-voltage lead length against your barbecue. It should not be assumed to fit every gas grill or to be compatible with a particular barbecue brand without matching these details.

Three-terminal ignition layout

The unit has three spark output terminals and is intended for use as a gas BBQ battery igniter. The stated discharge distance is 2-4mm. High-voltage down-lead lengths are specified across a range of 250-800mm, so measure the route from the igniter position to each connection point before ordering.

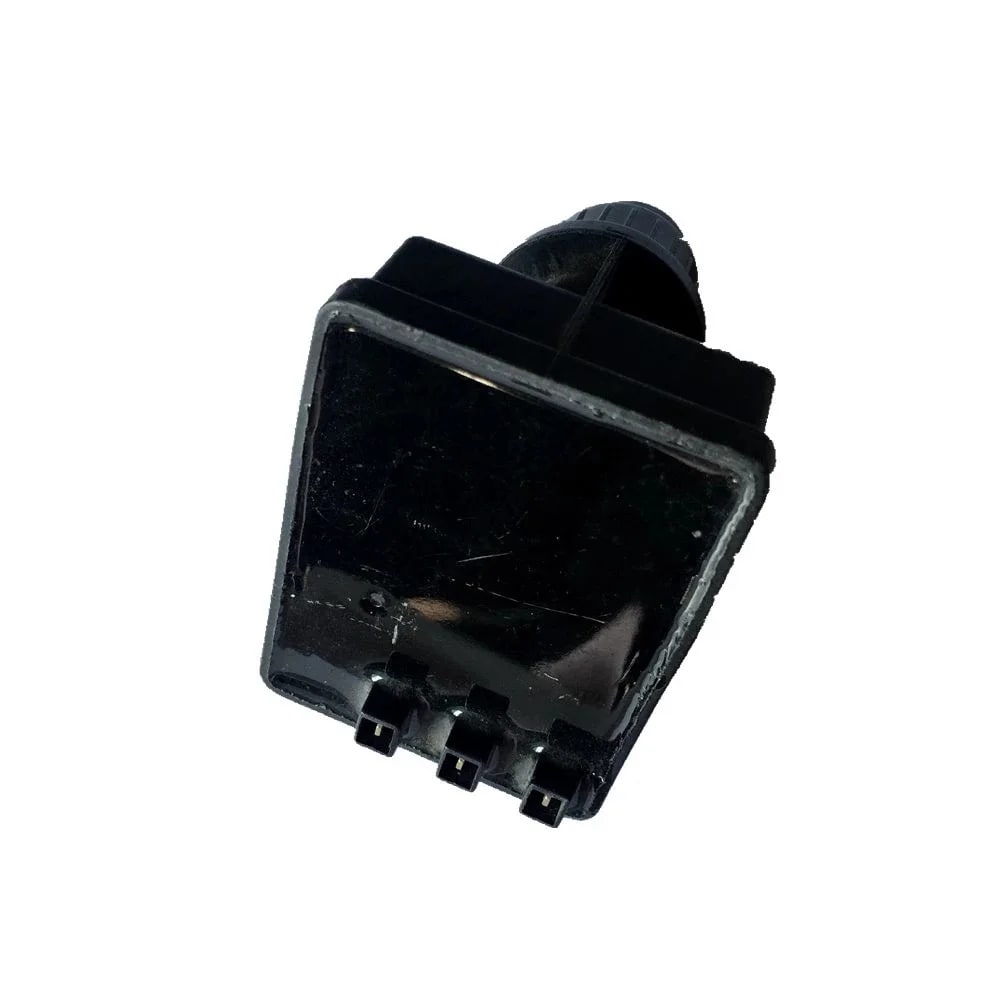

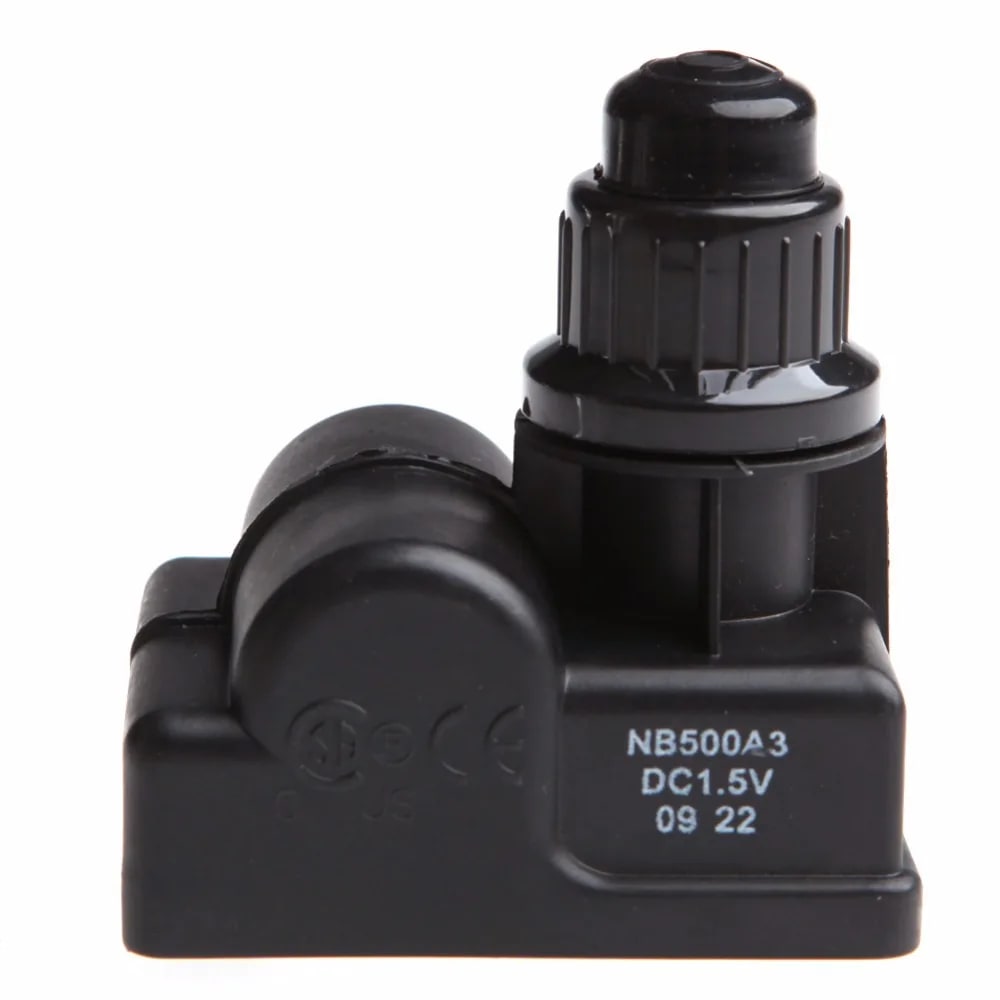

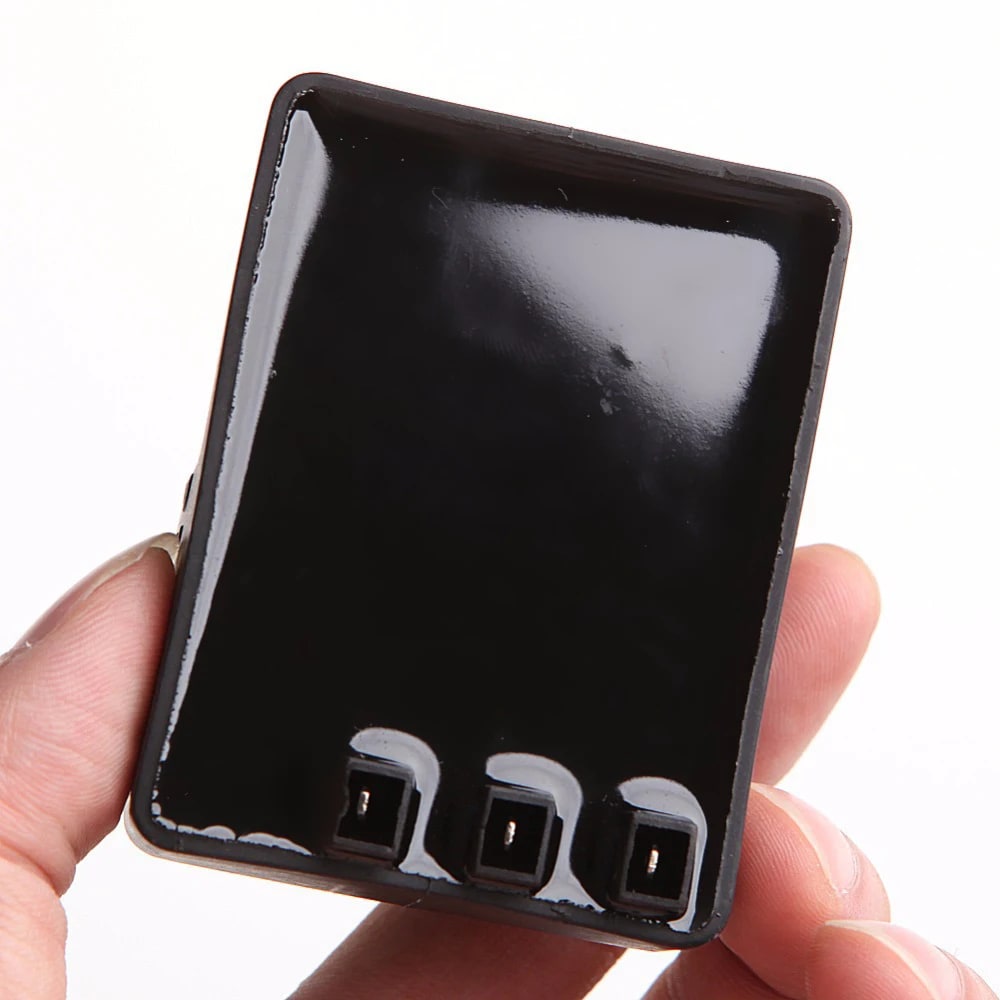

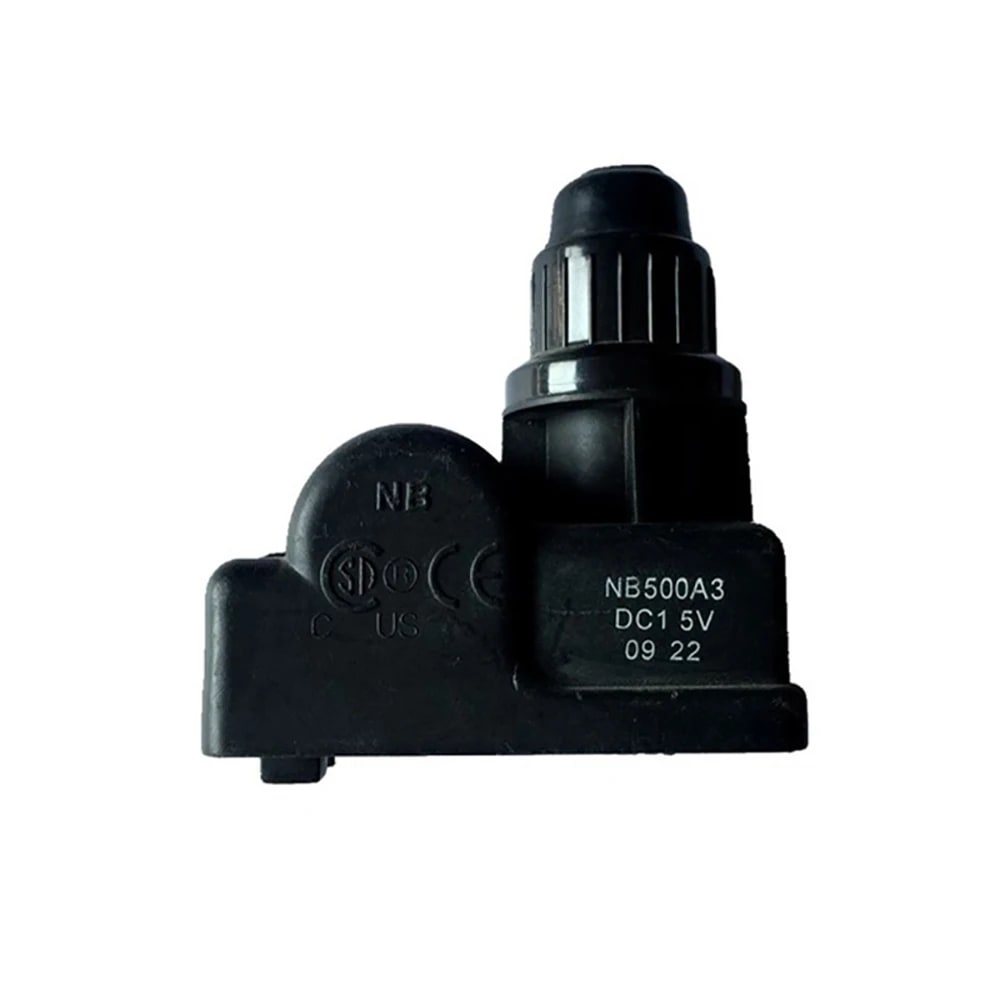

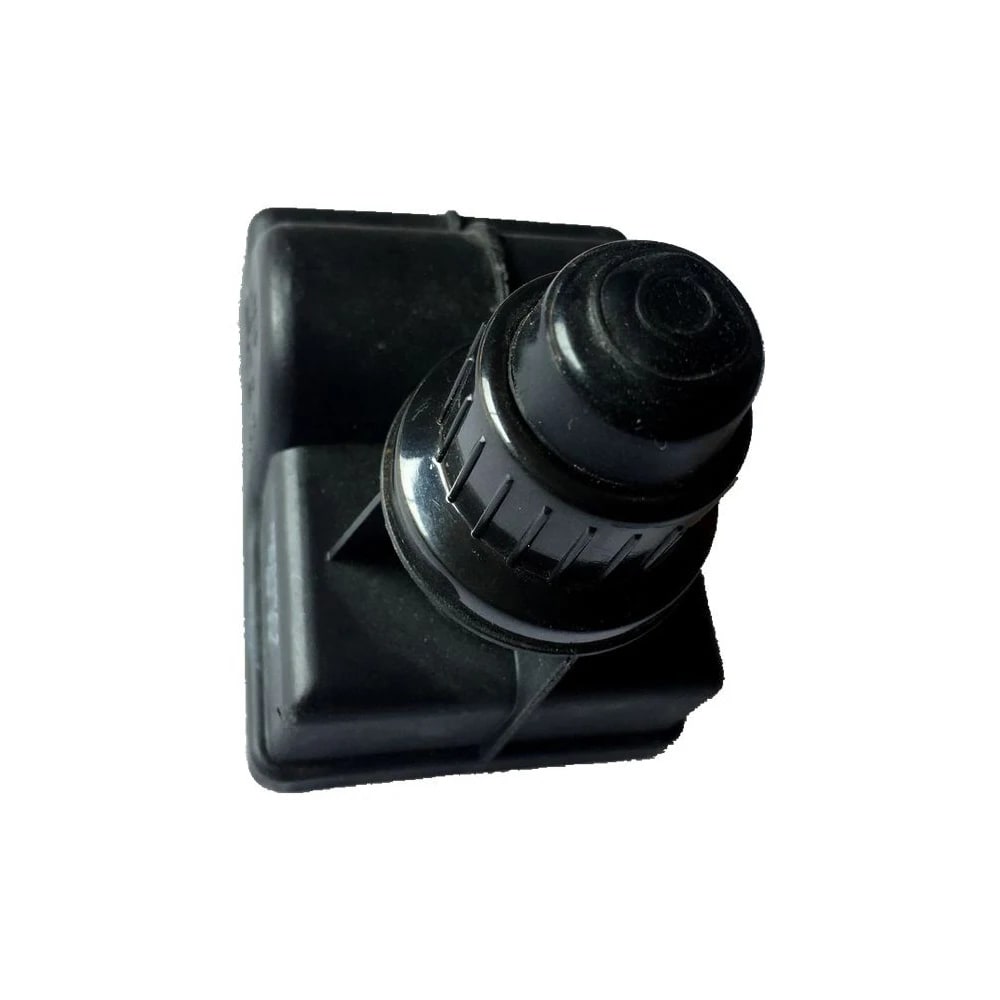

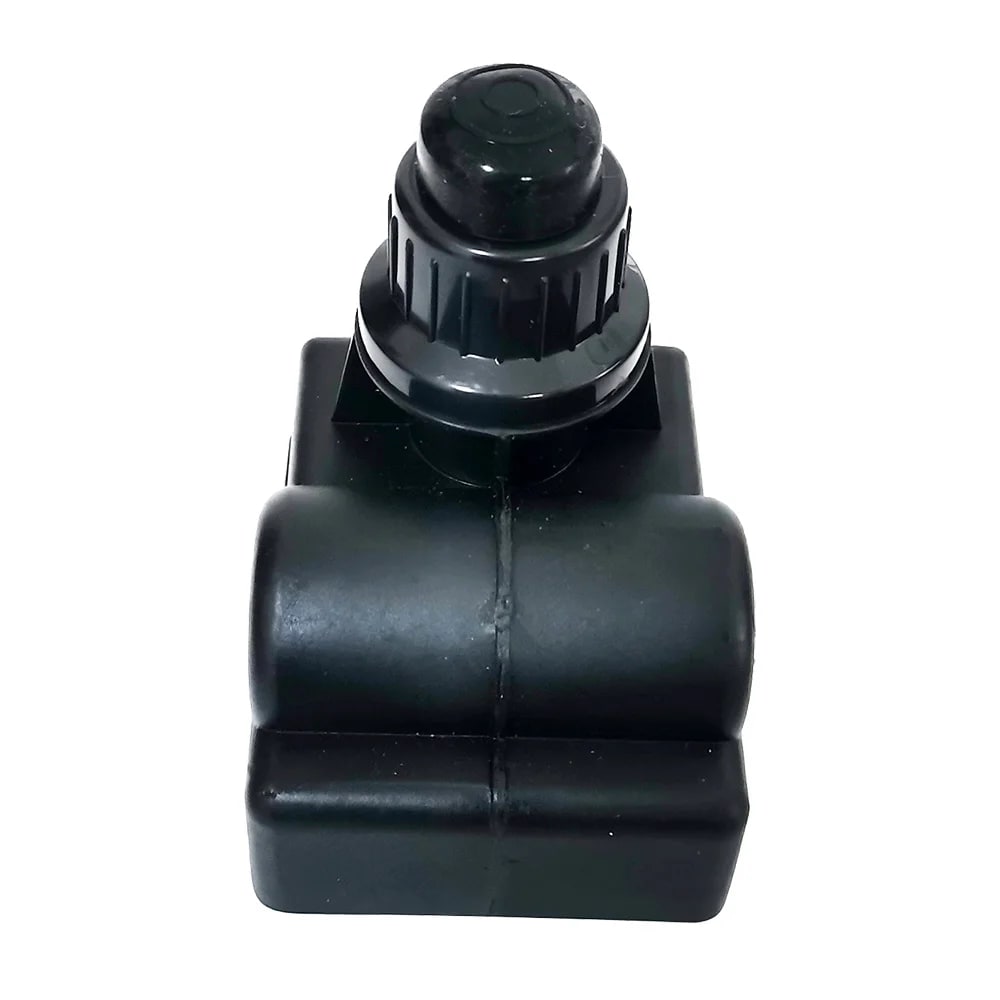

The housing is made from PP plastic and has a compact, enclosed form with a raised ignition control. Its black housing is marked for DC 1.5V operation, while the three terminal connections are positioned together at the base. The supplied model number is AI-DHQ009.

Electrical and operating details

• Electronic pulse igniter for gas BBQ ignition systems
• Three spark output terminals for a three-point connection arrangement
• Operates from a DC 1.5V input
• Uses an AA battery specification
• Input current is rated at <=160mA
• Stated discharge distance: 2-4mm
• High-voltage down-lead length range: 250-800mm
• Stated service life: >30,000 times

Housing, temperature range and certification

The igniter body uses plastic, specifically PP plastic. Its stated ambient temperature range is -20 to 85°C. The rating information also lists a maximum temperature of 85 or 120°C and a minimum of -20°C, so the relevant installation temperature limit should be checked for the intended setup rather than assuming the higher figure applies in every position.

This component is listed with CE / EU certification. It is identified as model AI-DHQ009 and is listed as manufactured in Mainland China.

Check your barbecue before fitting

For a suitable installation, compare the old igniter with this unit before fitting, including the number of spark terminals, battery specification, DC input voltage, connector arrangement and lead lengths. Pay particular attention to the 250-800mm high-voltage lead range and the three-terminal layout. If any of these details differ, seek confirmation that the component is suitable for your barbecue before making the connection.
