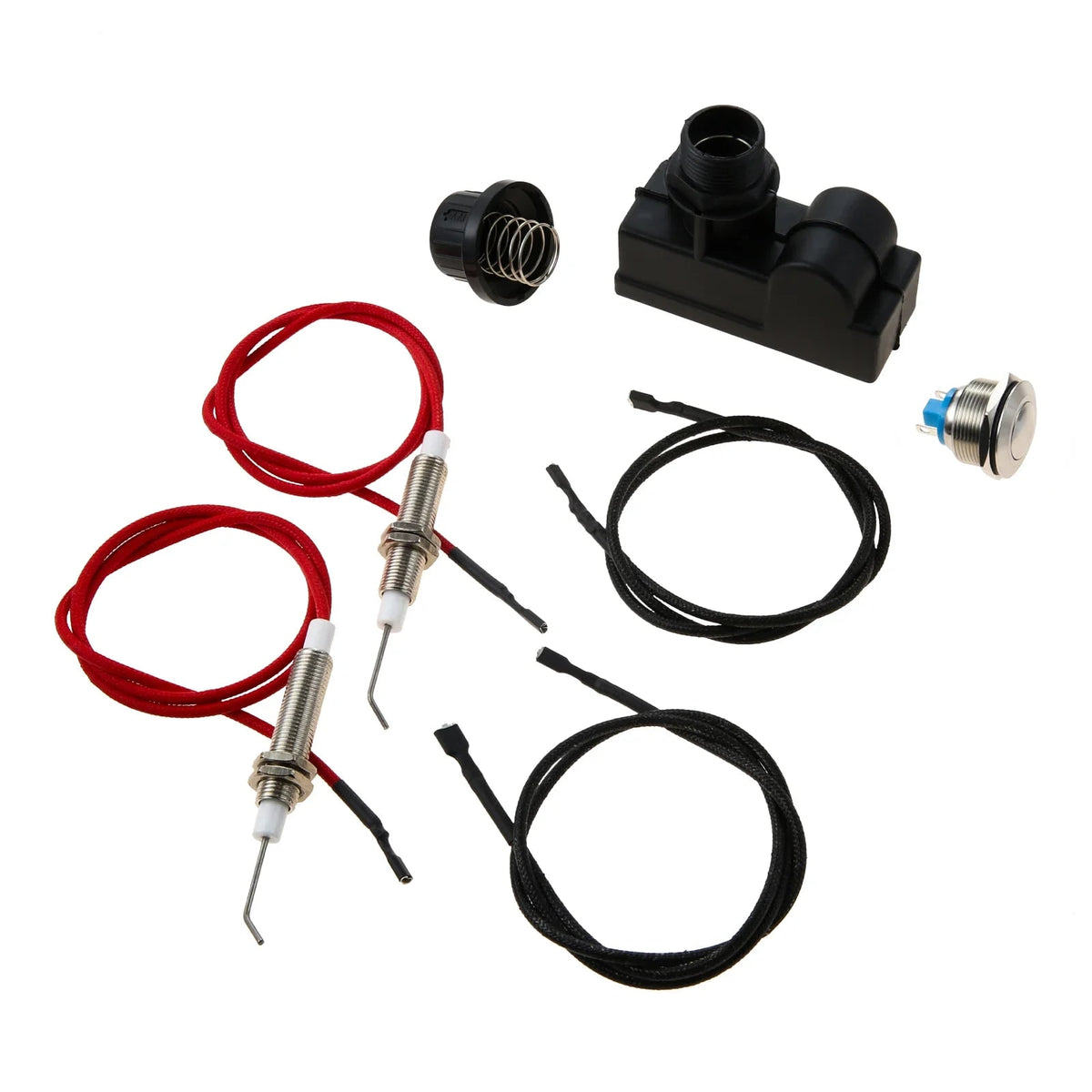

Gas Grill Igniter Kit with Push-Button Switch, AA Battery and 2 Electrodes

Replace a worn or faulty gas grill ignition setup with this push-button igniter kit, supplied with a control switch, ignition module and two electrode spark igniters. It is intended for selected portable grills, griddles, stoves and fire pits, including named Camco Olympian and Outland Living applications.

As ignition parts are not universally interchangeable, compare the measurements, connection arrangement and existing installation with the details below before ordering. The kit is identified as a replacement part for Olympian 5100 and 5500 grills and Weber 200 gas grills, but the exact fit depends on the appliance and its original ignition layout.

Key features

• Push-button control switch for a gas appliance ignition system
• AA battery-powered ignition arrangement
• Ignition module marked NB500B2 and DC 1.5V
• Two electrode spark igniters with threaded mounting sections and angled electrode tips
• Red electrode leads measuring approximately 680mm each
• Black ignition leads measuring approximately 610mm each

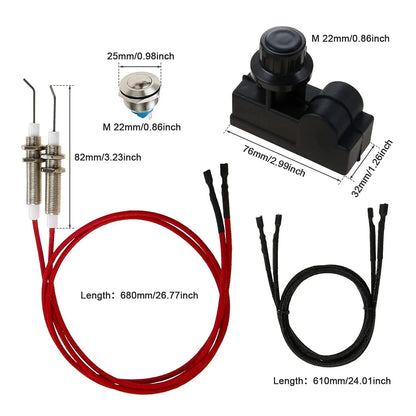

• Push-button diameter approximately 25mm, with an M22 threaded section
• Electrode body length approximately 82mm
• Ignition module measuring approximately 76mm long by 32mm wide
• Supplied as a four-piece kit

Check the fit for your appliance

This replacement igniter is listed for a range of outdoor cooking and heating equipment, including portable grills, griddles, stoves and fire pits. Specific applications named are Camco Olympian 5100 and 5500 grills, the Outland Living Firebowl outdoor propane gas fire pit, Olympian 5100 and 5500 replacement installations, and Weber 200 gas grills.

These references should be used as a starting point rather than as a universal-fit claim. Check the appliance model, available mounting space, lead lengths, terminal arrangement and the dimensions of the original parts. The button is approximately 25mm across and uses an M22 threaded section, while the electrode body is approximately 82mm long. The ignition module is approximately 76mm by 32mm.

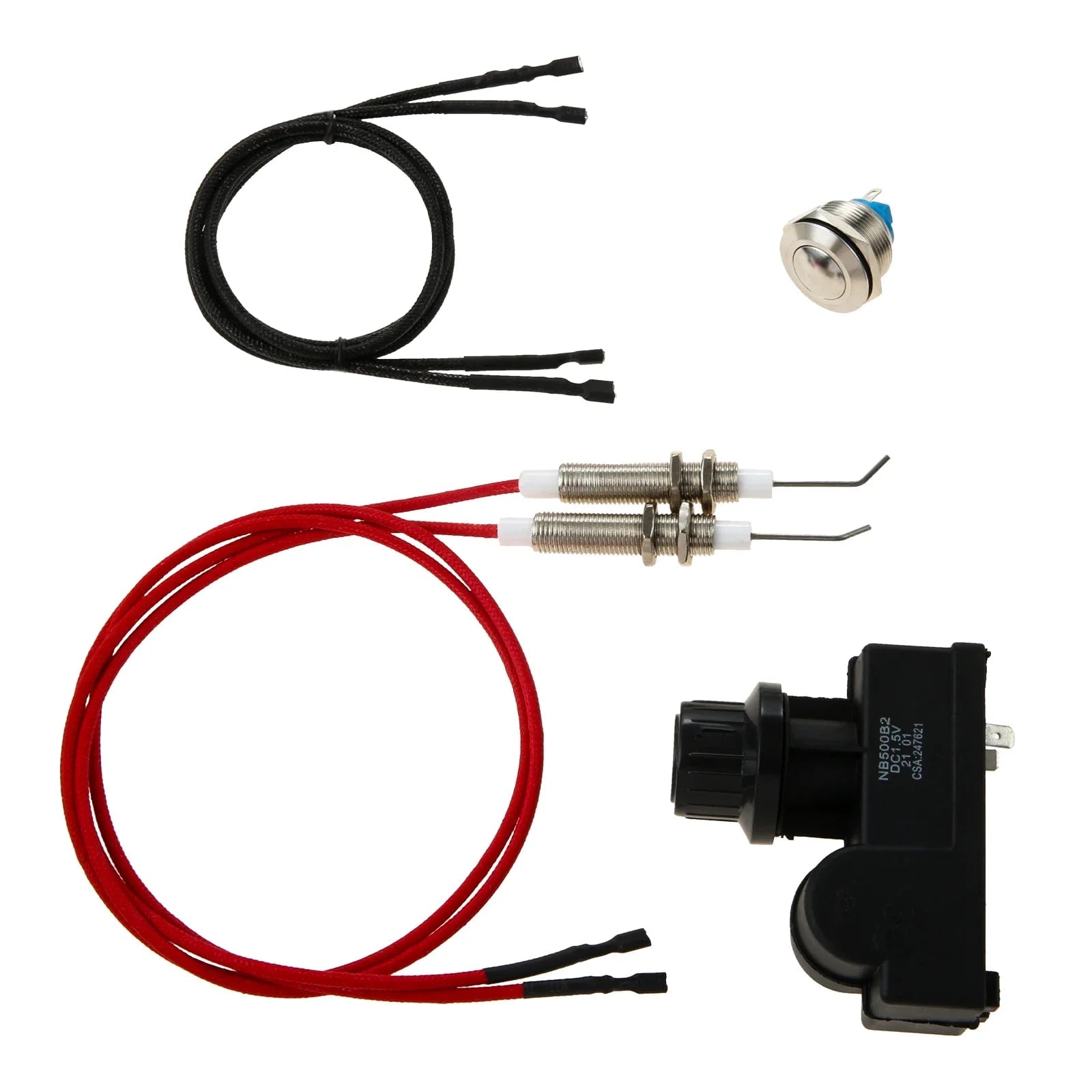

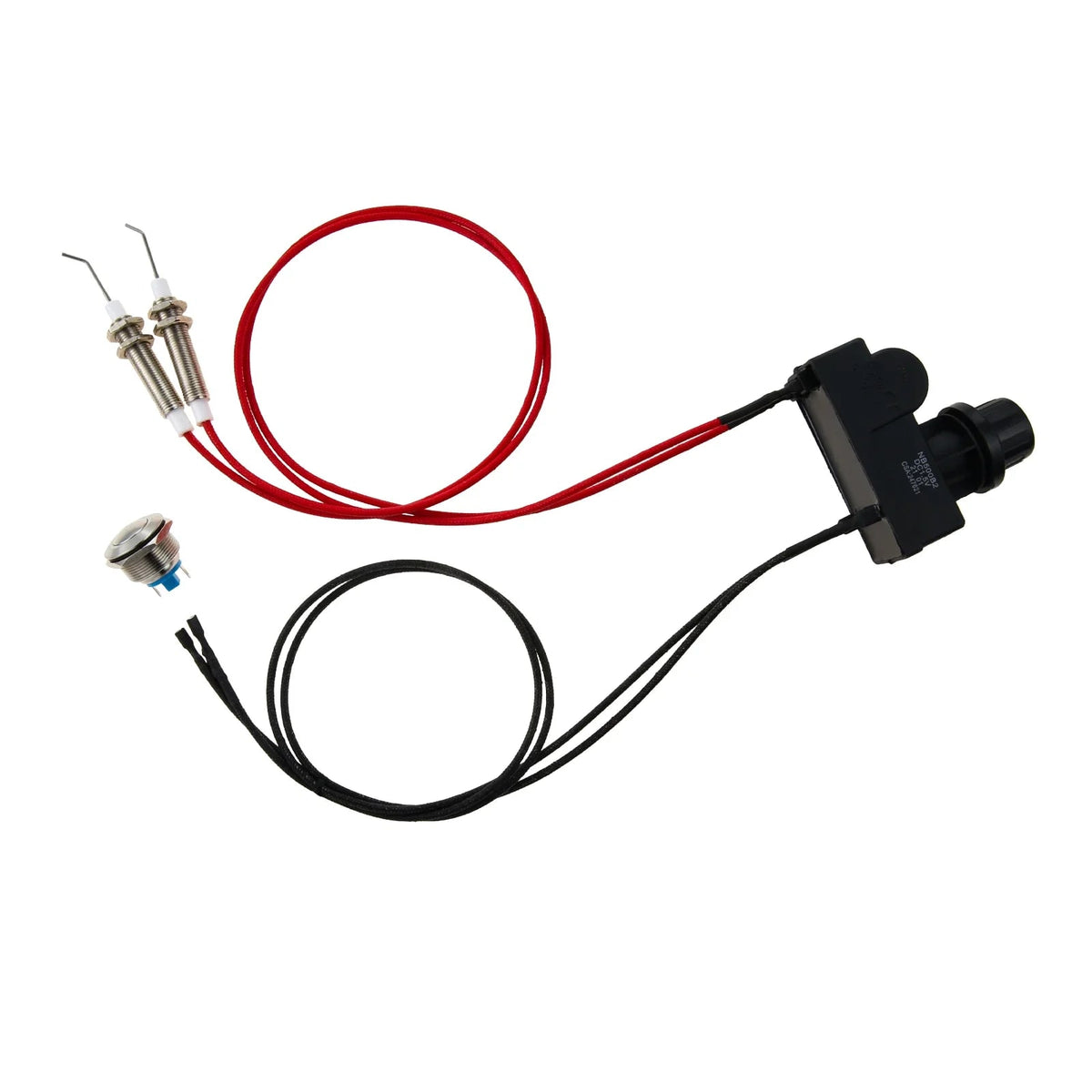

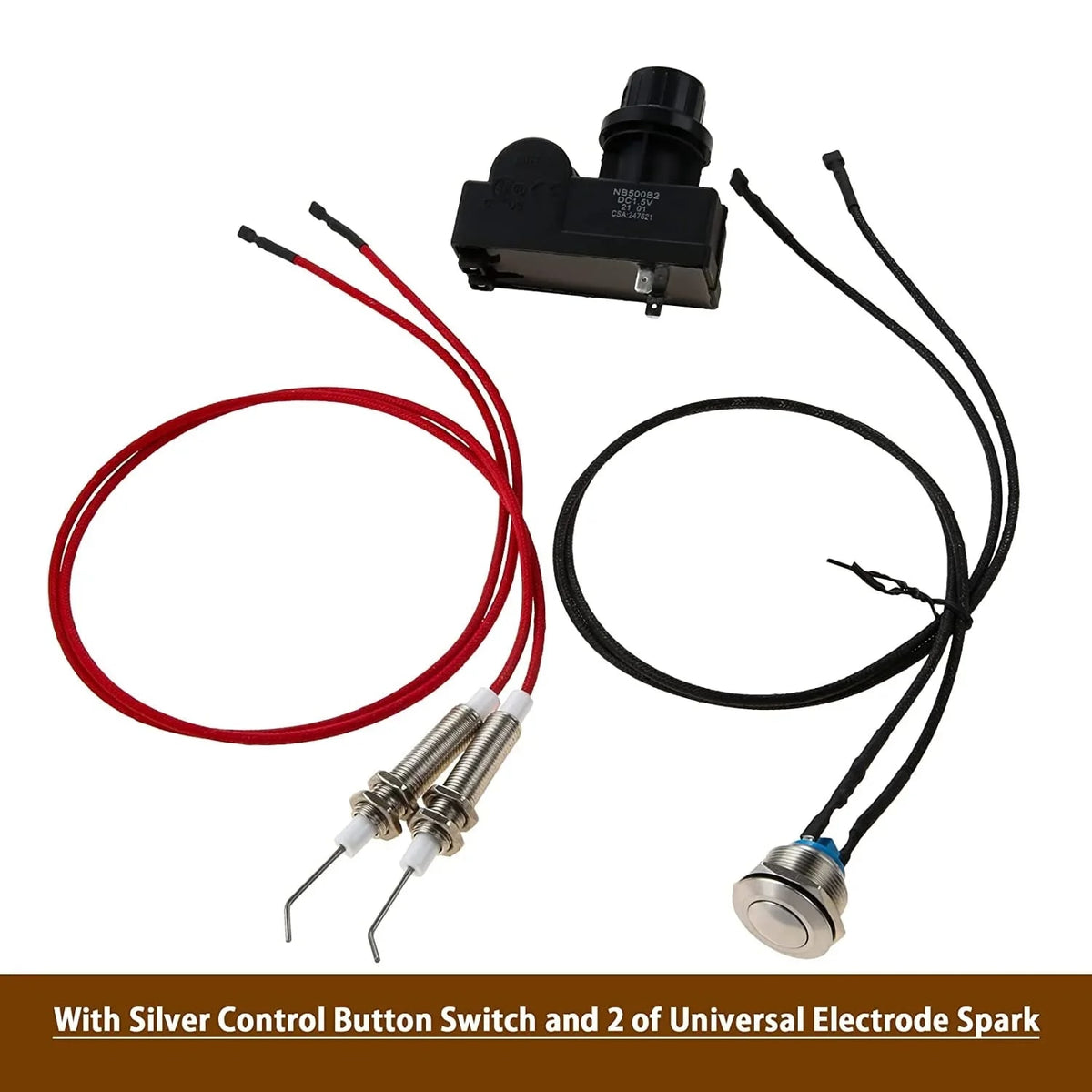

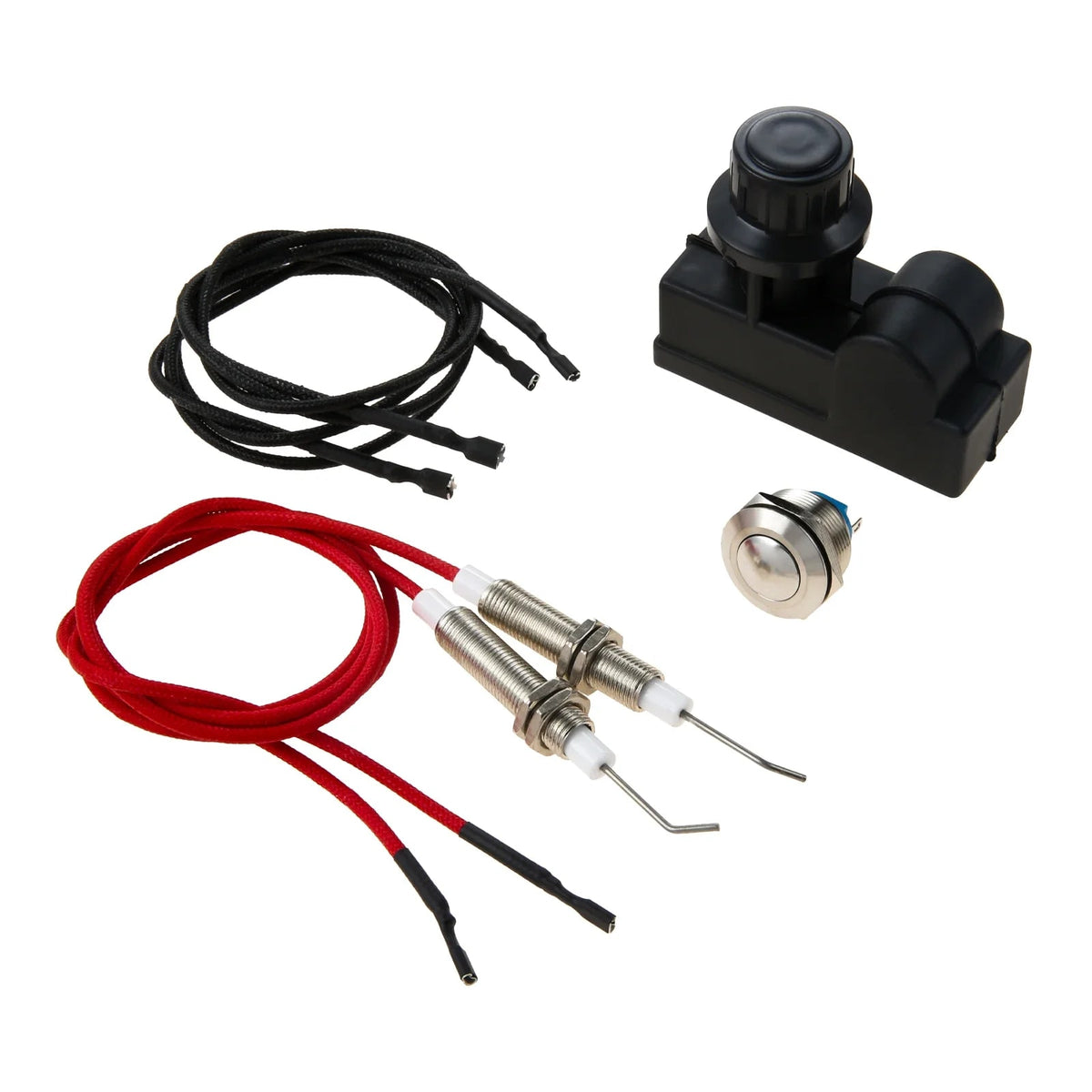

What is included

The four-piece arrangement consists of the push-button control switch, ignition module and two electrode spark igniters. The red electrode leads are approximately 680mm long, and the black leads are approximately 610mm long. An AA battery is required for the ignition system, and the module is marked DC 1.5V.

Fitting notes

Use this kit only where its dimensions and electrical connections correspond with the appliance being repaired. Turn off the gas supply and allow the appliance to cool fully before working on the ignition system. Installation should follow the appliance manufacturer’s instructions and the original wiring arrangement. After fitting, check that the electrodes are correctly positioned and that all connections are secure before use.

Product information

This item is listed as an outdoor-cooking accessory and is manufactured in Mainland China. It is supplied as a replacement ignition kit for compatible gas grill, griddle, stove and fire pit installations.
