Piezo Spark Ignition Set, 2 Kits, M10x1 Electrode, 30cm Wire

Push-button piezo ignition sets for gas appliances

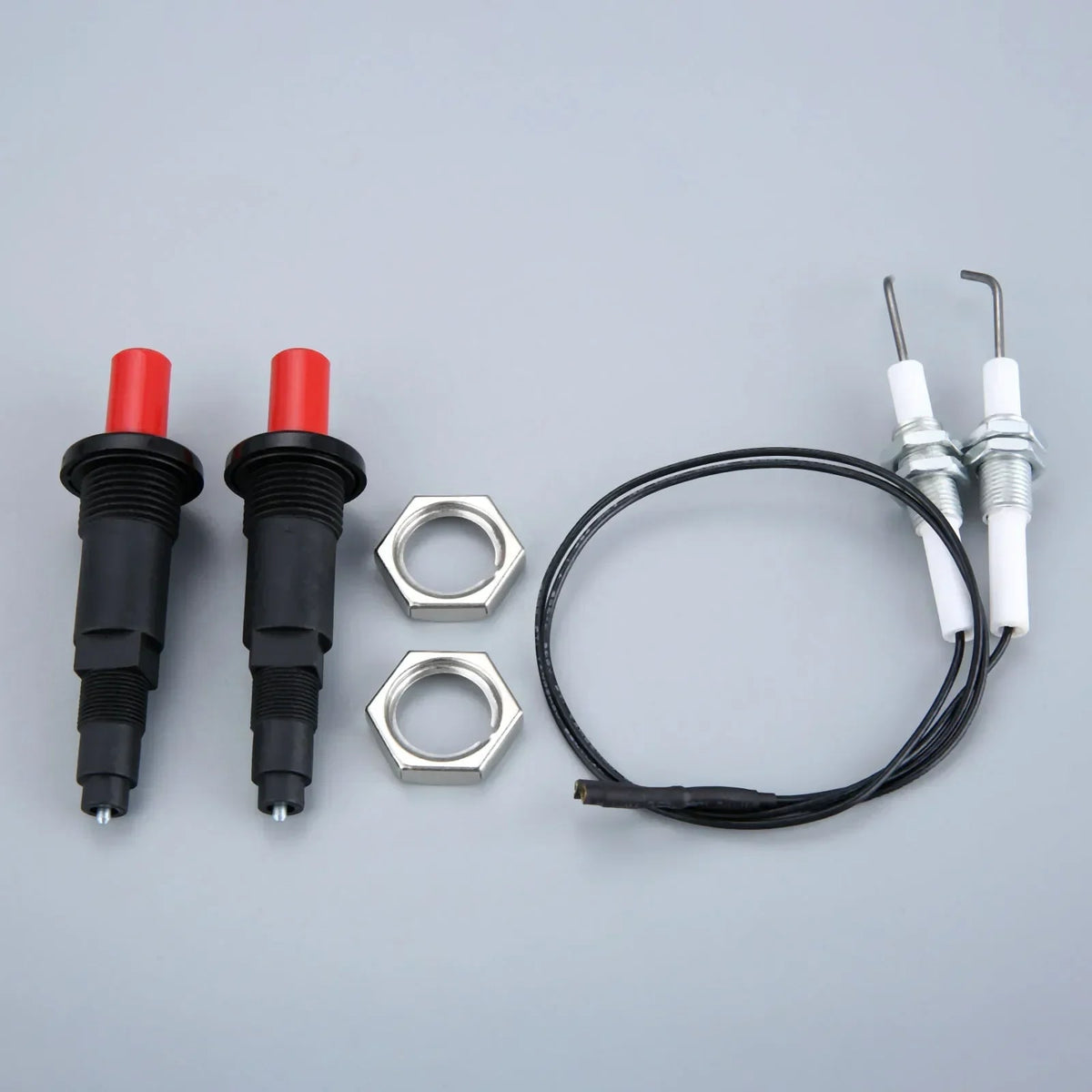

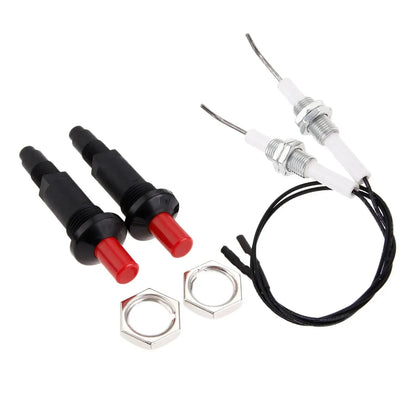

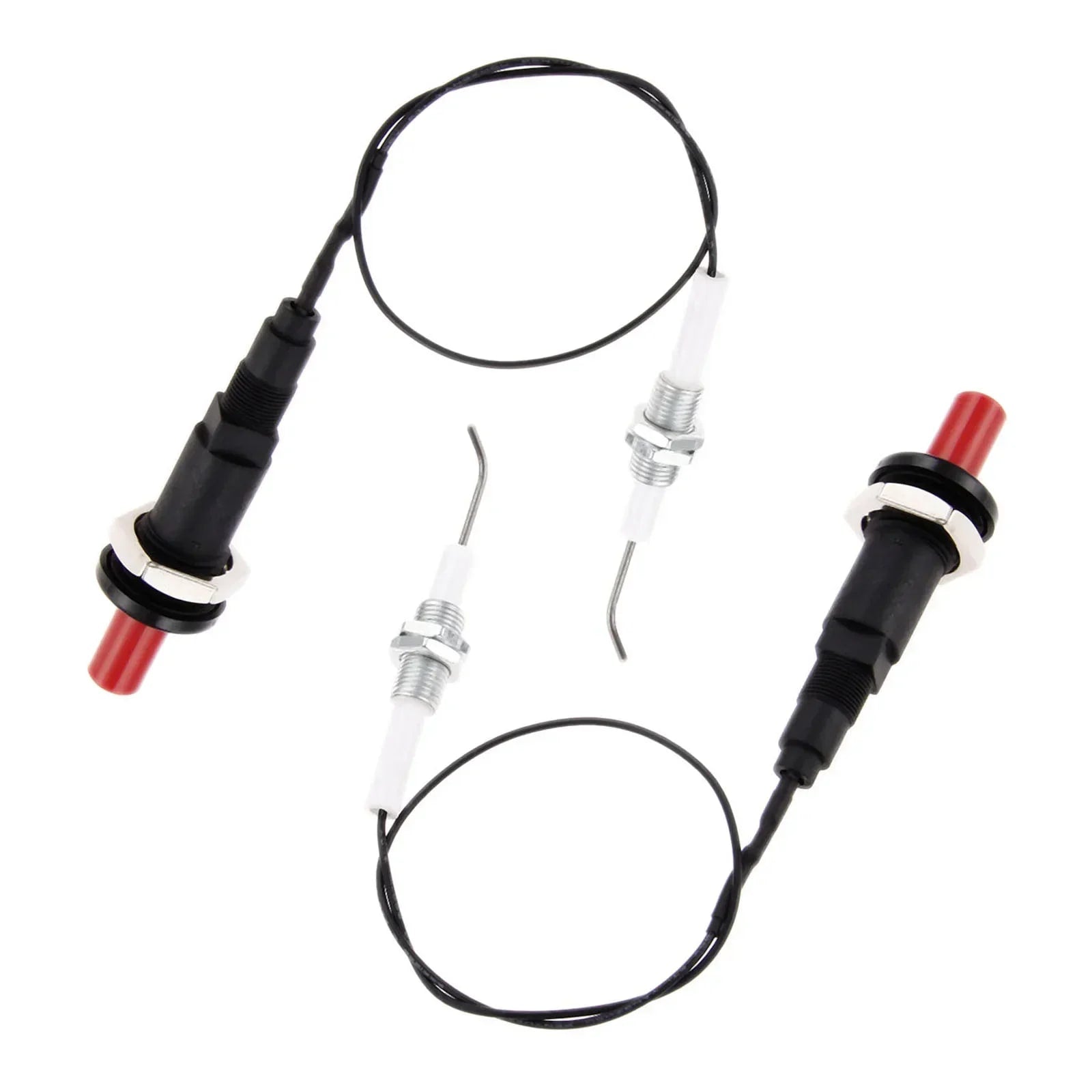

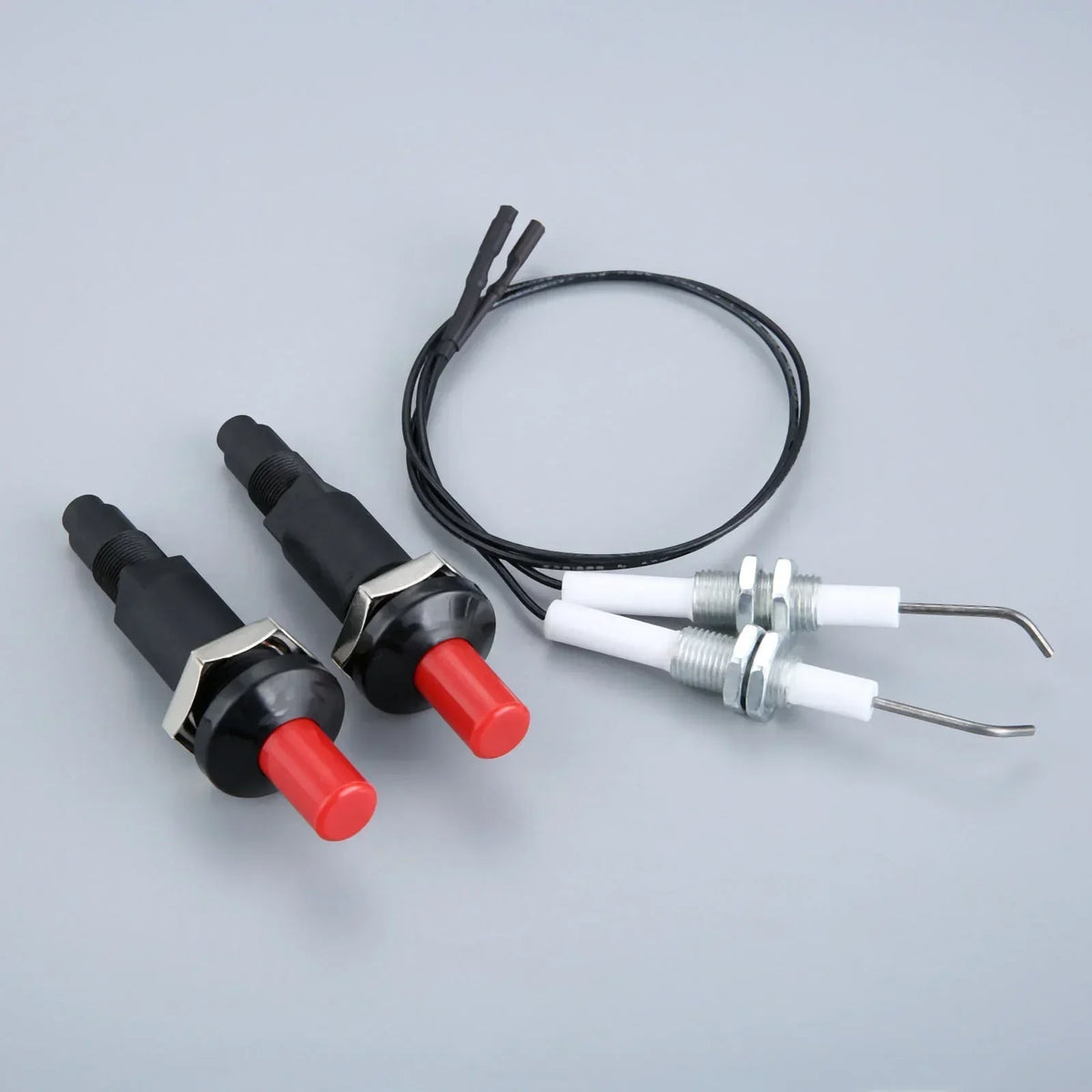

Restore a push-button spark ignition arrangement with this set of two piezo spark ignition kits. Each set combines a plastic push-button spark generator with a wired electrode featuring an M10x1 thread. The design is intended for applications using liquefied petroleum gas, natural gas or alcohol oil, including suitable oven and grill ignition arrangements.

The generators produce an output voltage of at least 20kV, with a stated sparking distance of 3-5mm. This makes the set suitable for replacement or repair work where the existing ignition components use the same thread and dimensional arrangement.

Who it suits

This replacement set is useful for outdoor-cooking equipment and other compatible appliances that use a manual push-button piezo ignitor. It is supplied as two kits, making it a practical option when two ignition points require attention or when a spare matching set is useful for future maintenance.

How to choose the correct fit

Check your existing ignitor before ordering rather than assuming universal compatibility. In particular, compare the mounting thread, available space, electrode position and wire length with the measurements below. The electrode uses an M10x1 thread, while the supplied wire length is 30cm. The electrode length is 60mm.

• M10x1 electrode thread
• 30cm wire length
• 60mm electrode length
• Pin straight length: 19.5mm
• Pin head angle: 135 degrees
• Pin head section: 9.0mm

Key ignition details

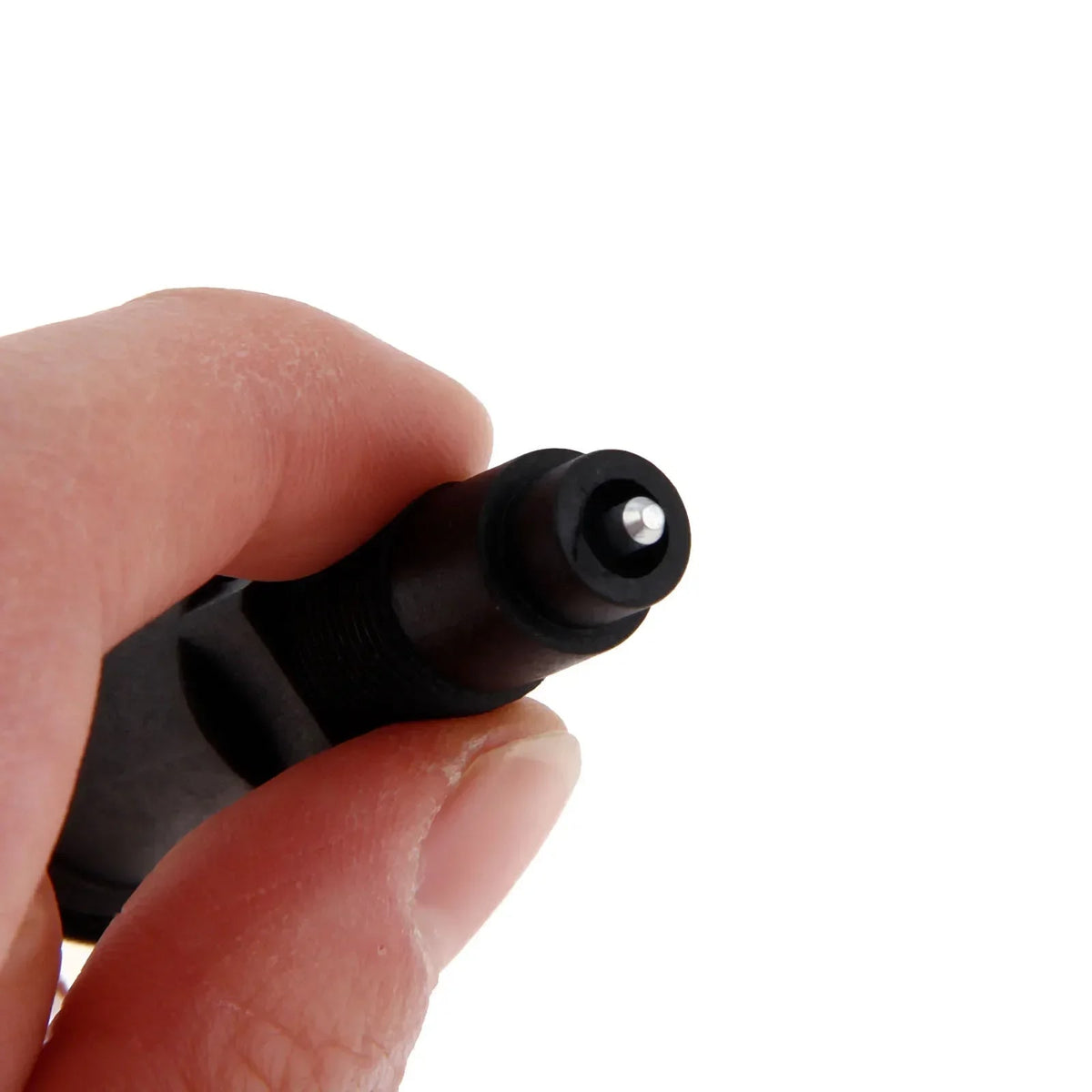

The push-button generator housing is made from plastic. The stated service life is over 30,000 operations, and the unit is listed as type 1 out 1. The electrode geometry includes a straight pin section and a 135-degree bend at the head, so clearance and alignment should be checked carefully against the original component.

Fitting and sensible checks

Disconnect the appliance from its fuel supply and allow it to cool fully before removing an old ignitor. Fit only where the M10x1 thread and electrode dimensions match your appliance. Position the electrode correctly in relation to the burner and ensure the wire is routed clear of hot or moving parts. After fitting, follow the appliance manufacturer's instructions for checking ignition. If the installation involves a gas appliance, use a suitably competent technician where required.

Keep the components clean, dry and protected from unnecessary impact during storage. Inspect the wire, electrode and push button before use, and do not use damaged ignition parts.

At a glance

• Two piezo spark ignition kits
• Plastic push-button generators
• Output voltage of at least 20kV
• Sparking distance of 3-5mm
• For liquefied petroleum gas, natural gas or alcohol oil applications
• Manufactured in Mainland China
