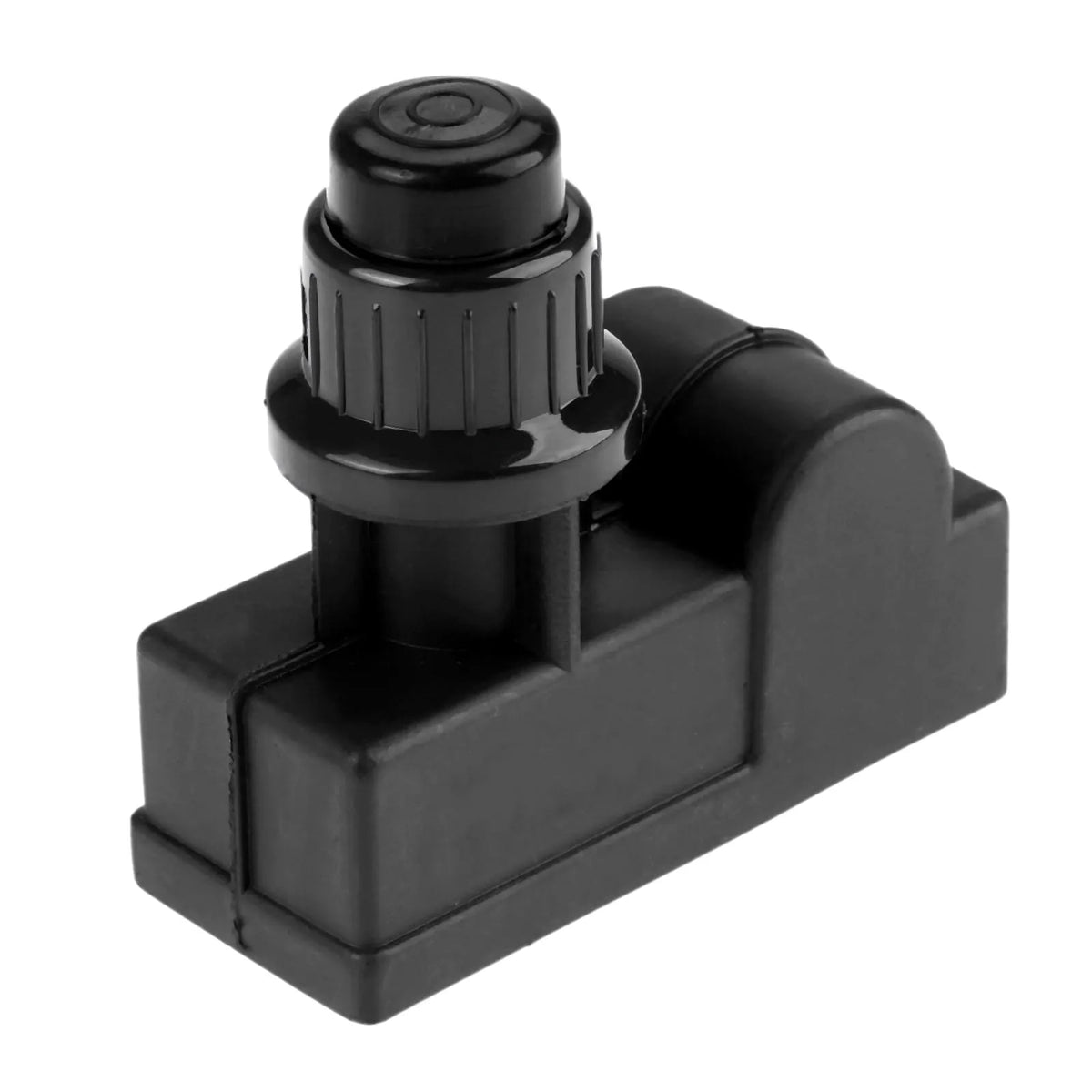

Universal 2-Outlet Electronic Push-Button Spark Generator Igniter, 1.5V AA

This universal electronic spark generator is a two-outlet push-button igniter for compatible barbecue gas ignition systems. It uses a single 1.5-volt AA battery and has a 7/8-inch mounting hole, making the mounting measurement an important part of checking whether it suits your existing setup.

Could this igniter fit my barbecue?

The unit is listed for barbecue applications associated with Broil King, Broil-Mate, Kenmore, Kmart and Master Chef. However, it should not be assumed to fit every model from these brands. Before ordering, compare your existing igniter with the supplied mounting and overall measurements, and check the connection arrangement for your barbecue.

• Mounting hole: 7/8 inch diameter
• Two outlet connections

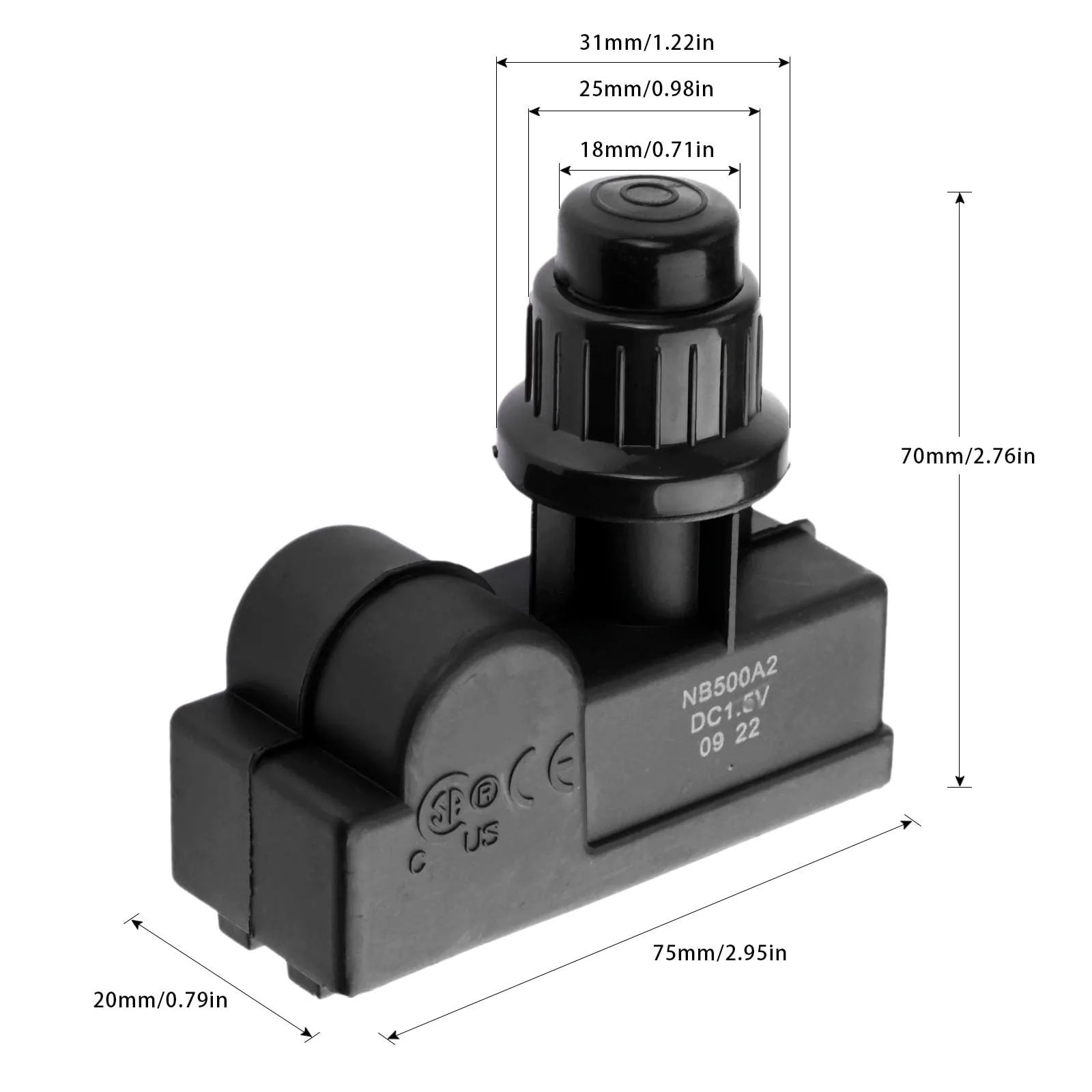

• Overall dimensions shown: approximately 75mm long, 20mm wide and 70mm high
• Push-button dimensions shown: approximately 31mm across at the outer section, with 25mm and 18mm stepped sections

What does the two-outlet design do?

Two outlets allow the generator to connect with a compatible two-connection ignition arrangement. This makes it a practical replacement option where the original barbecue ignition generator uses two outlets, but the connection layout and existing wiring should be checked before installation.

Which battery does it use?

The generator is marked for DC1.5V operation and uses a 1.5-volt AA battery. The battery is not included, so a suitable AA battery will be required separately. Check the battery compartment and polarity before use.

What is it made from?

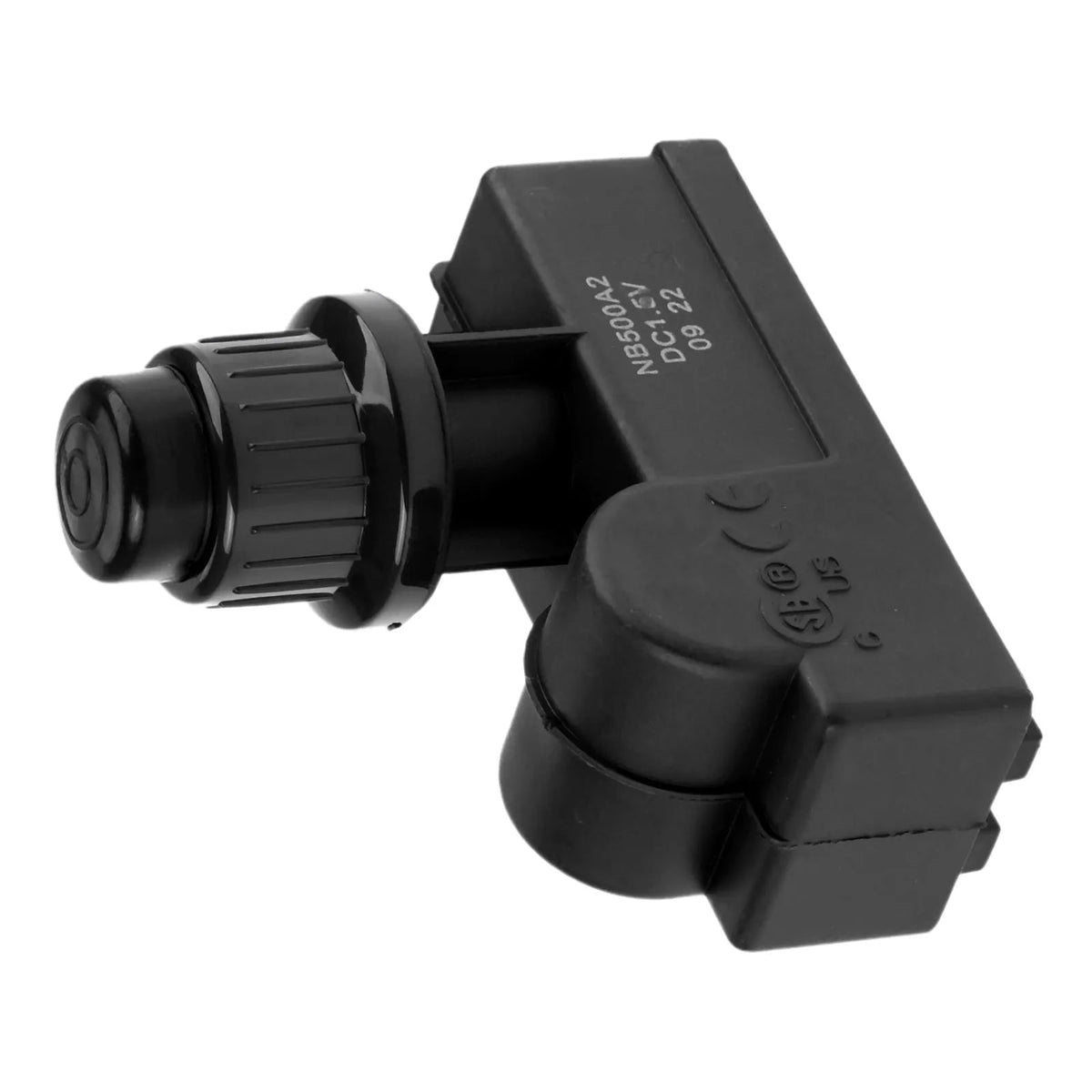

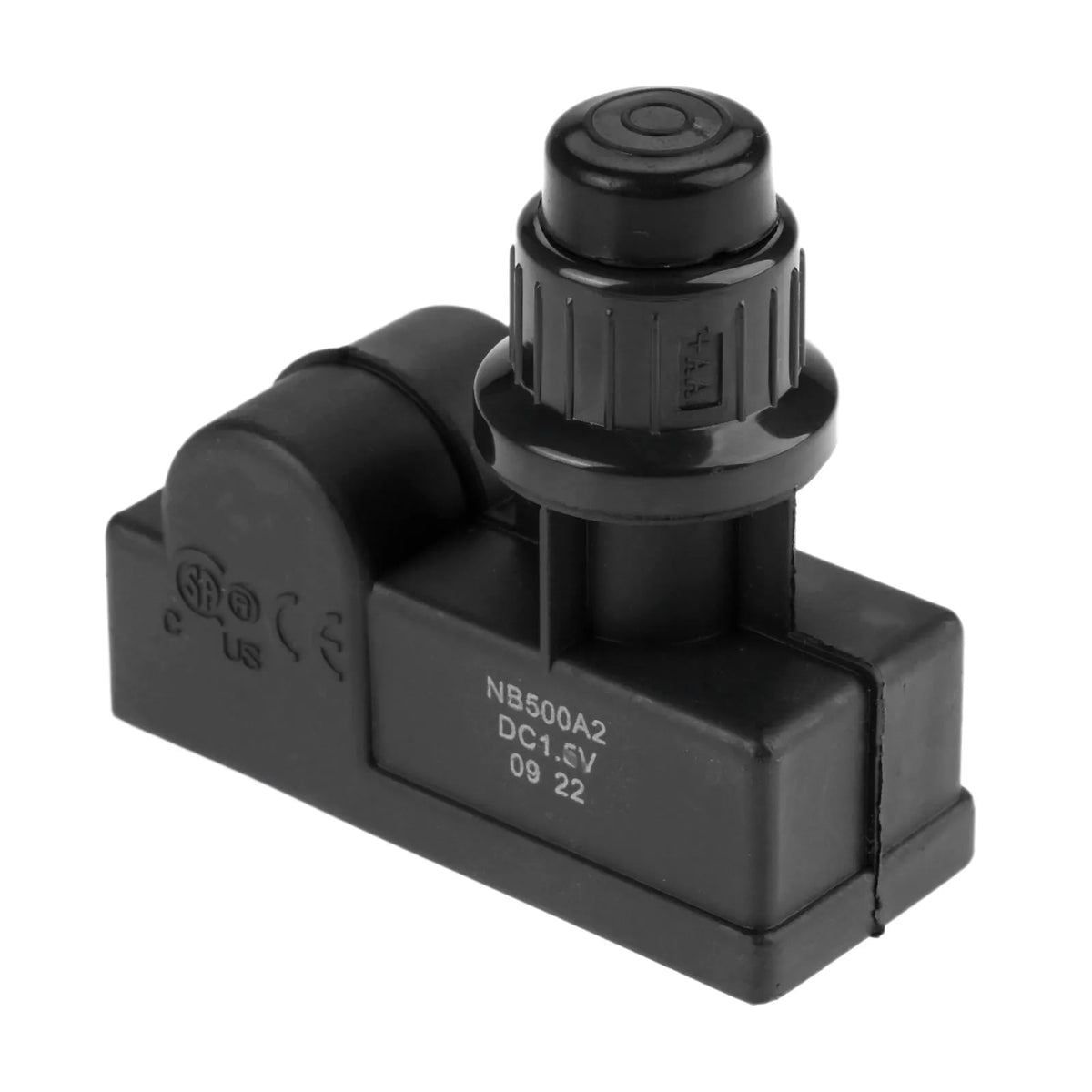

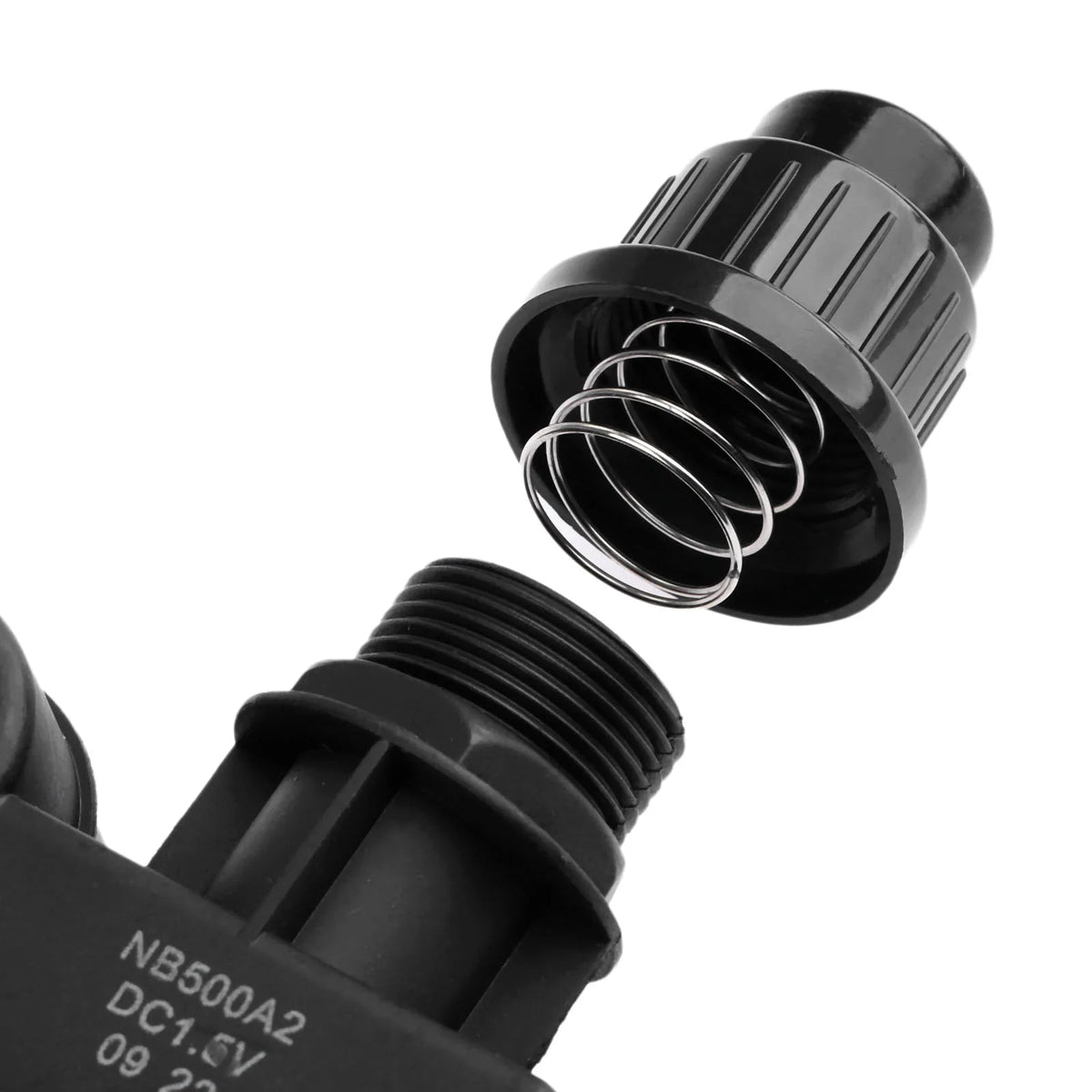

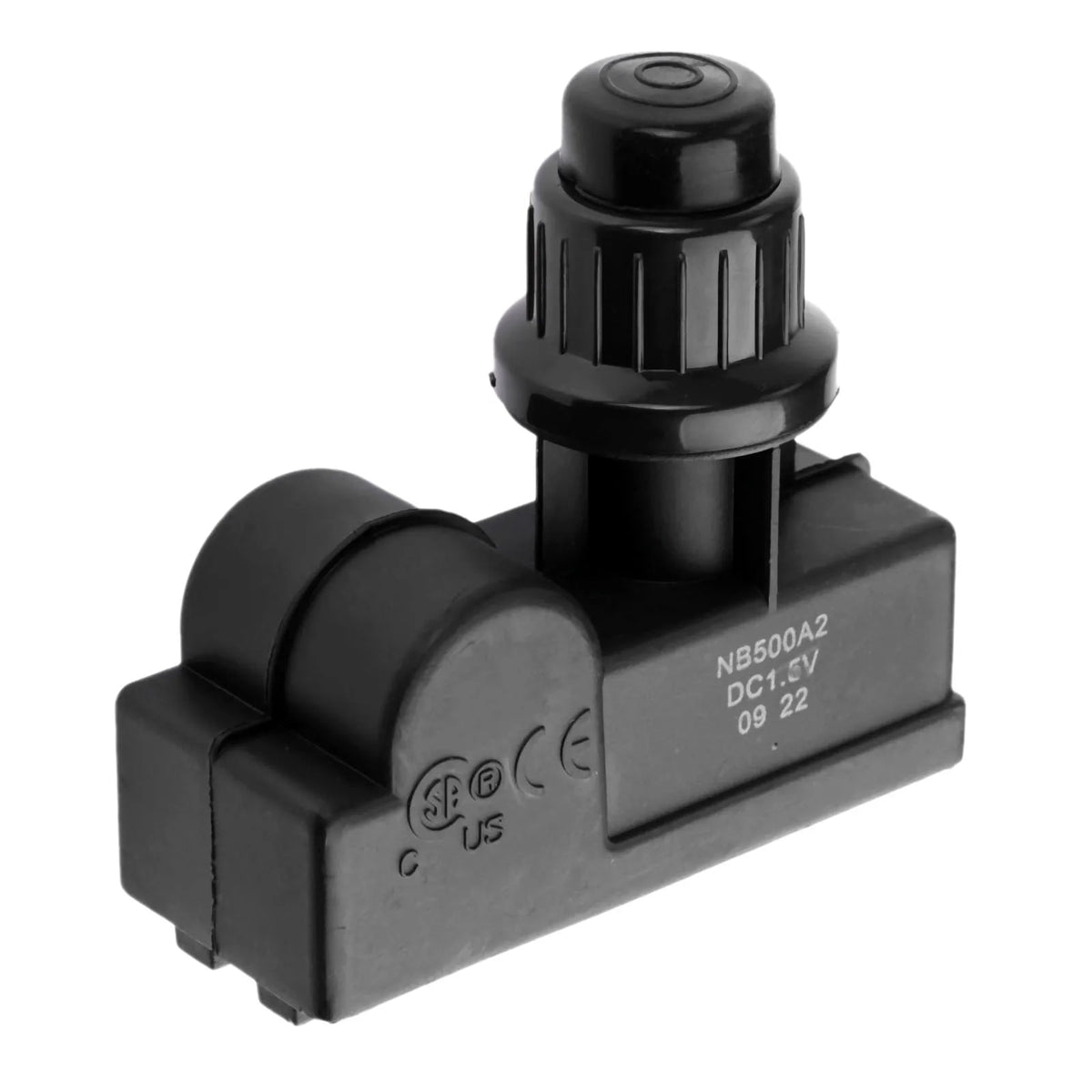

The push button is made from plastic. The unit is black and carries the model marking NB500A2. Its compact form is intended for installation as part of a compatible barbecue ignition system rather than as a standalone cooking accessory.

What should I check before fitting?

1. Measure the mounting hole in the barbecue fascia or control panel. The required hole diameter is 7/8 inch.
2. Confirm that your existing ignition system uses two outlets.
3. Compare the available space with the approximate 75mm by 20mm by 70mm overall dimensions.
4. Check the connection arrangement and battery requirement before removing the original part.

The product is identified with CSA and CE certification markings. Country of manufacture: Mainland China.
