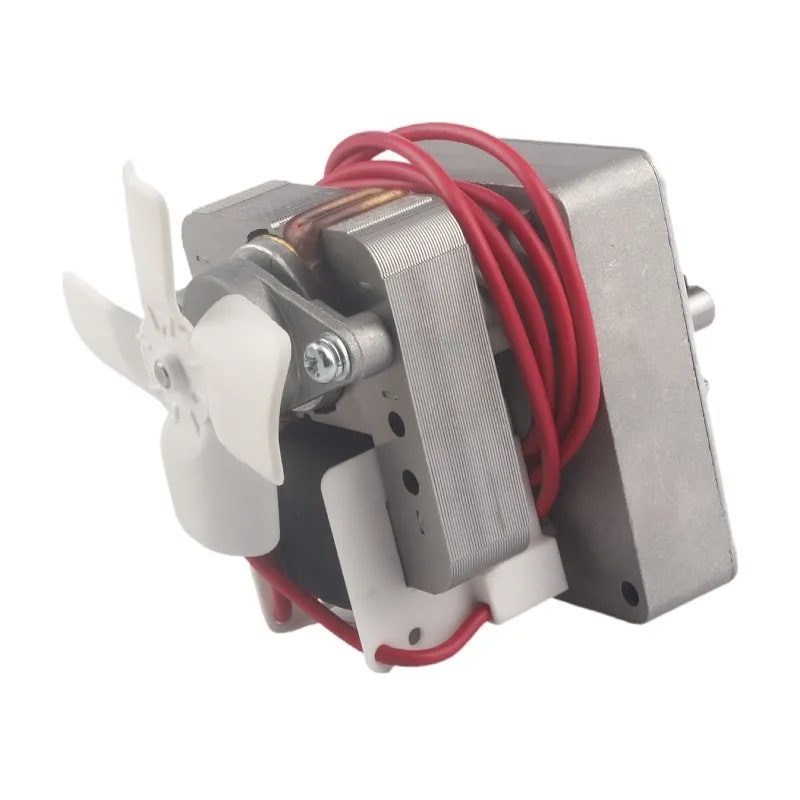

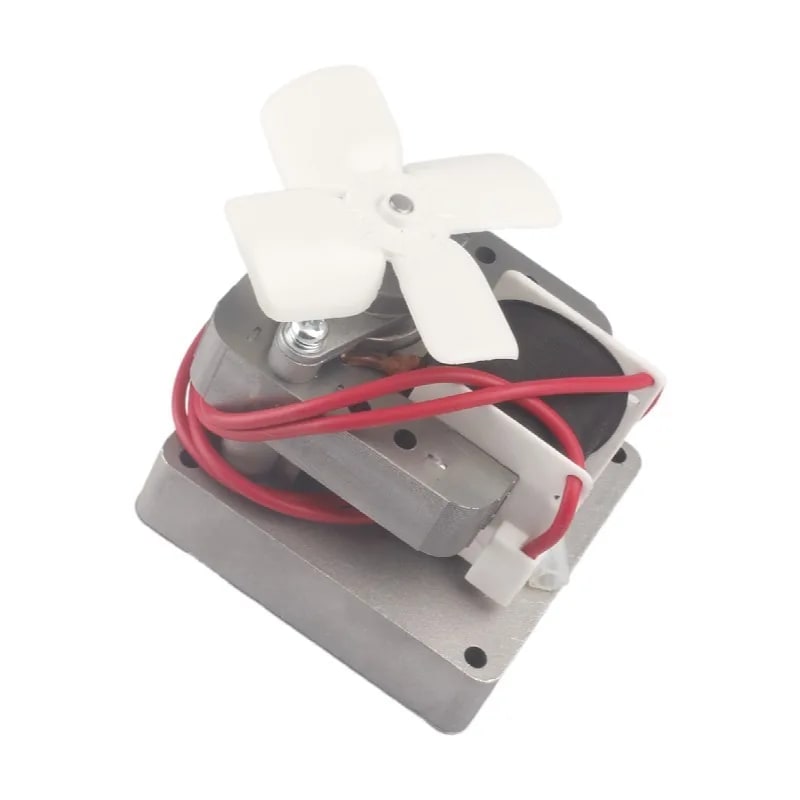

Wood Pellet Grill Auger Motor 220-240V 50/60Hz 1.6-2.8rpm 6016

This 6016 auger motor is intended for feeding mechanisms in outdoor ovens, including wood pellet grill systems, as well as heaters and other household appliances. It operates at 220-240V and 50/60Hz, with a stated speed range of 1.6-2.8 revolutions per minute.

Could this motor suit my pellet grill?

Use the motor type, electrical requirements and physical dimensions to check suitability for your equipment. The 6016 specification identifies a stator width of 60mm and a stator thickness of 16mm. These measurements should be compared with the motor currently fitted to your grill or appliance before ordering.

It is not possible to confirm universal compatibility from the motor type alone. Also compare the shaft arrangement, mounting points, wiring and connector with your existing assembly. The motor is intended for outdoor ovens, heaters and household appliances, but a specific grill make or model is not identified.

What does the 6016 auger motor do?

An auger motor provides slow, controlled rotation for a feeding mechanism. In a wood pellet grill, this type of motor is used with the pellet-feed system. Its low rotational speed is suited to applications where the drive mechanism needs steady movement rather than high-speed rotation.

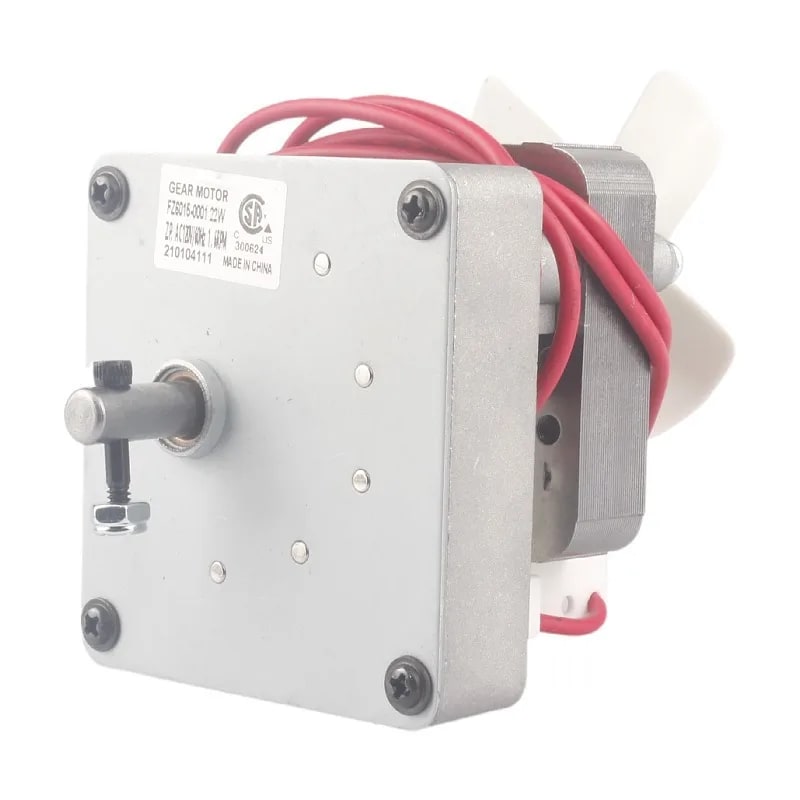

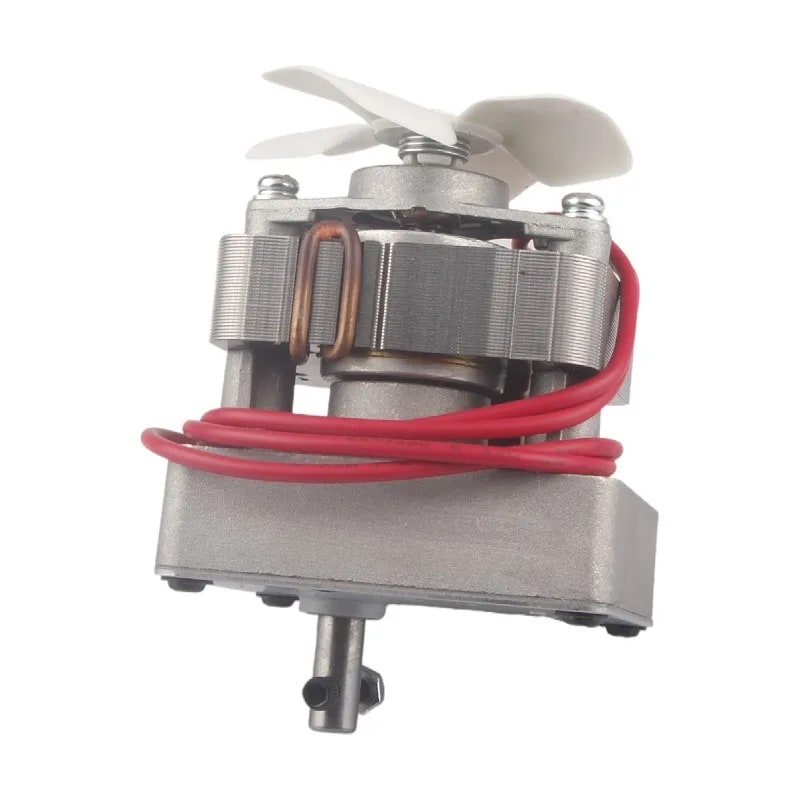

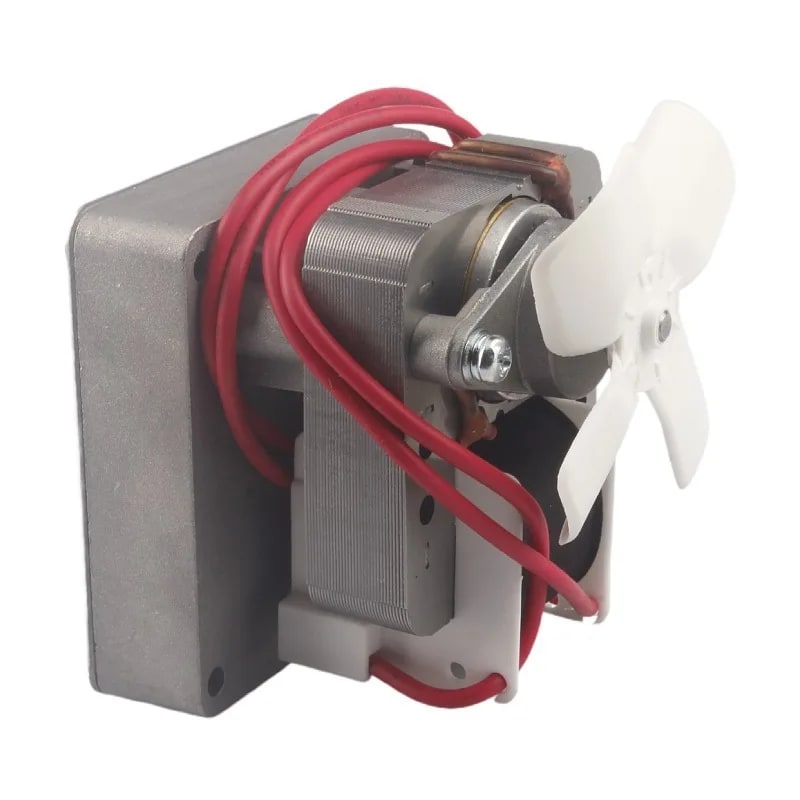

The motor assembly has a geared drive, a projecting drive shaft and attached wiring. The supplied specification describes it as an auger motor, feed motor, shaded-pole motor or geared motor. The same type of component may also be used in some heater and household appliance assemblies.

What are the electrical requirements?

• Operating voltage: 220-240V
• Frequency: 50/60Hz
• Rotational speed: 1.6-2.8rpm
• 6016 stator width: 60mm
• 6016 stator thickness: 16mm

No power rating is stated for this product, so do not select it by wattage. Check that the voltage and frequency match the appliance and that the motor’s mechanical arrangement corresponds with the part being replaced.

How should I choose the correct replacement?

Before installation, remove the existing part only when safe to do so and record how the shaft, mounting plate, wires and connector are arranged. Compare those details with this motor, along with the 6016 stator measurements. A motor that has the correct voltage but the wrong shaft or mounting arrangement may not be suitable for the appliance.

This is a mains-voltage electrical component. Installation and wiring should be carried out by a suitably qualified person, with the appliance isolated from the power supply. Follow the appliance manufacturer’s service instructions and check the completed installation before use.

Where can it be used?

The stated applications include outdoor ovens, heaters and household appliances. Its most relevant barbecue use is as a motor for the feeding mechanism in a wood pellet grill. It is a component for repair or replacement work rather than a complete grill, pellet hopper or control system.

Manufactured in Mainland China.
